FORUMLEDEN met NOSTALGIE......"vreemde" kisten (deel 2)

http://www.aviatorsdatabase.com/wp-...f-Vought-Aircraft-Industries-Retiree-Club.pdf

Groeten Jef



aan u de volgende



Nieuwe zoektocht


Succes , groeten Jef



TIP;
Ontwerper was Amerikaans maar het vliegtuig is gebouwd in Frankrijk

Groeten Jef



Sloan Bicurve

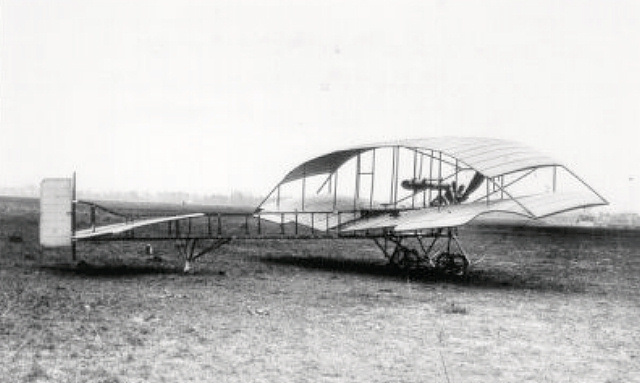

From 1910 to 1912 the American John Sloan built his series of "bicurve" biplanes in a small workshop in the Paris suburb of Charenton. As with so many of the early designers and builders, it is difficult to determine how many of the machines appearing under his name were new ones, or merely earlier ones modified and developed.
His first was shown in 1910, typical of his bicurve designs with the shorter top wing arching down at the tips almost meeting inboard of the tips of the lower wing, with the extended leading and trailing edges of the upper wing joined to those of the lower. The lower wing had some dihedral, and then its tips drooped also, with large ailerons on the trailing edges near the ends. The long uncovered rectangular fuselage sat 2 in tandem behind the engine; a tall rectangular rudder stood up at the rear above a long tailplane set at a high angle on the fuselage. The elevators were connected to a forward elevator mounted on outriggers. The aeroplane rested in front on 2 pairs of wheels with a skid between each pair, and a tailwheel; the latter was replaced with a skid before the end of the year. The lower wings were called lifting surfaces and the upper ones stabilizing surfaces: the theory was that the downward curve of the lower wings would "slow the chute if the engine cut."

(Span: (upper) 8 m; (lower) 10.95 m; chord: (upper) 2 m; (lower) from 2 to 2.9 m at the tip; length: 11.3 m; wing area: 49 sqm; speed: c 75 kmh; 50 hp Gnome with a 2.5 m diameter Sloan propeller)
A similar machine, or the same one altered, was often photographed in flight. The forward elevator was gone, and a 35 hp Labor provided power through chains to the 2 tractor propellers. The pilot sat in a sort of bucket. Another version - or modification - flew next, with the Gnome and a single tractor propeller, front elevator, but with a less-drooping top wing. It crashed in 1911.

Sloan's penultimate reported flying machine was flying in 1912 at Issy, seemingly a throwback to the 1910 designs, with the twin skid of the Concours Militaire entry; a final design was similar to the 1912 military aeroplane but with a small inline 4-cylinder motor.
In the years 1911-1912 he was working on plans fora 18.5-meter span Calais-Dover passenger biplane, with a single big float and a boat-shaped fuselage and a 100 hp Clerget; it was not built.

Johannes



Proficiat
Op naar de volgende Johannes

Groeten Jef



En hier een nieuwe uitdaging.



Johannes



Is het een Nurflügel?



Nee, het is geen Nurflügel, wel een Duits toestel.

Johannes



Waar is z'n kielvlak dan?



Hij is nog niet af.
Er zit een 4 PK Siemens motor op het toestel.

Johannes



hoi johannes

het plaatje is verdwenen......



welk plaatje



Ik vermoed het plaatje van laatste opdracht, in bericht #2307.

Sabbatical gehad Steffe?



.
Oke, een nieuwe...
En een hele makkelijke om af te trappen:



Groeten, Ramses
.



Ik weet het zo niet, maar het stabilo halverwege het kielvlak doet me denken aan Gloster.

Roundel/registratie wegpoetsen?



zo te zien een oud toestel van de RAF.....

dag ron....
jaaa ik kben weer in het land...

steffe
.



https://en.wikipedia.org/wiki/Fairey_Barracuda

Groeten Jef



Èg nie makkelijk nie, ik had er nog nooit van gehoord/gezien/gelezen: "My, are you ugly." Terwijl ik de bijvoorbeeld Swordfish wel kende, en de Tirpitz ook.
Nu ken ik beide, beetje bijgelezen
