    Thank you unusual! I add dimensions on the plans and fortunately they are 100% accurate!
    To be honest I prefer cutting the templates by myself.
    Unfortunately it is not possible to flatten a surface in Fusion 360. It would be very useful for skinning.

  2. Tamiya1970

    Tamiya1970

    Lid geworden:
    31 mrt 2012
    Berichten:
    1.011
    Looking good !

    Dim L vindt dit leuk.
  3. Unusual RC

    Unusual RC

    Lid geworden:
    19 mei 2004
    Berichten:
    1.743
    Locatie:
    Rijswijk, Zuid Holland
    That is the downside of free software. It might be possible in Fusion, however it could be a feature you have to pay for :(

    I know it can be done in Inventor, solid edge and SolidWorks (not the basic versions)

    A work around can be making use of the sheet metal functionality. However you are then limited to single direction curved surfaces.

    Dim L vindt dit leuk.
  4. Dirk Jan

    Dirk Jan Forum veteraan

    Lid geworden:
    2 apr 2003
    Berichten:
    3.540
    Locatie:
    Veenendaal
    Having the ribs printed 1:1 is already a huge plus.
    Flatten the surfaces for making the plating contours is in my opinion not a huge added benefit. I never used it, although I know the feature. By hand building, you will always find some imperfections. Using paper and cardboard for making templates of the plating works maybe even better in that case.

    Unusual RC en Dim L vinden dit leuk.
  5. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece

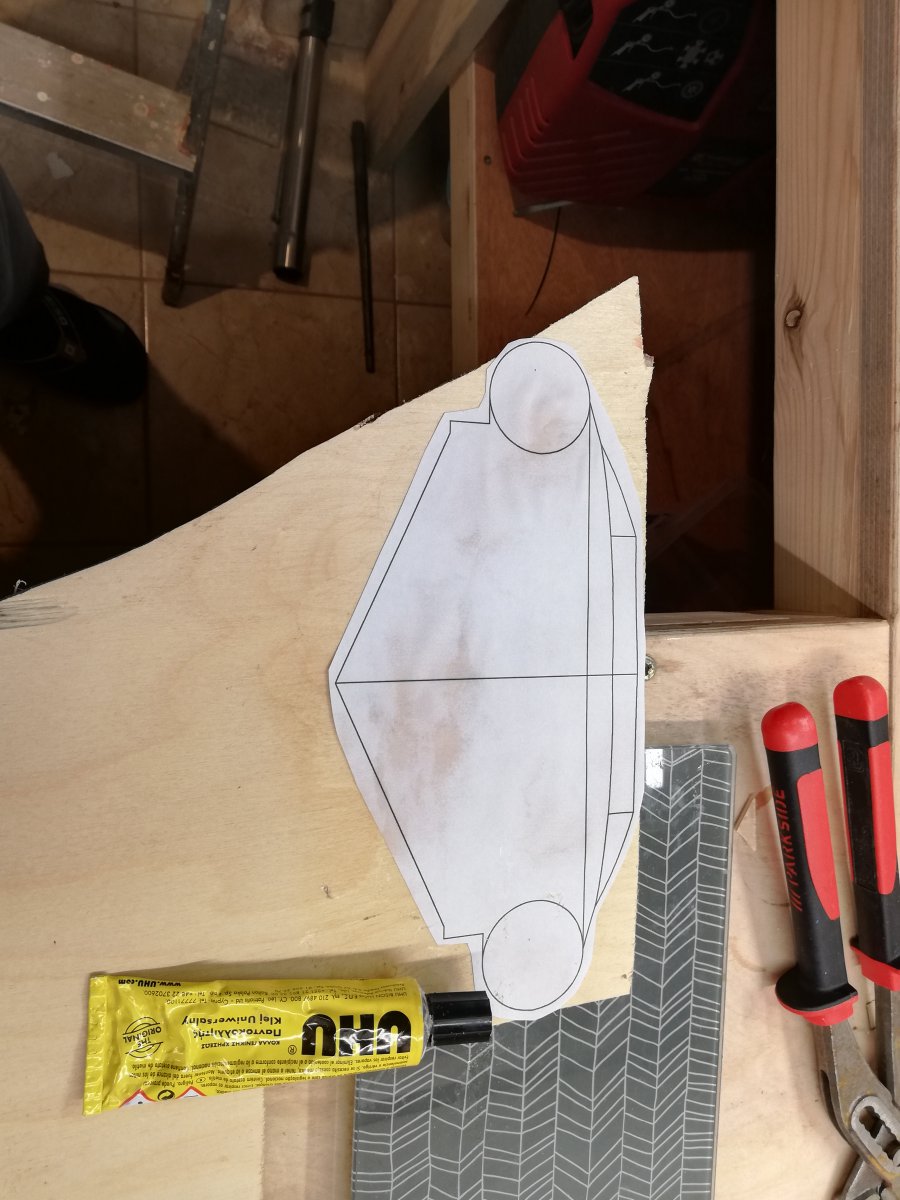

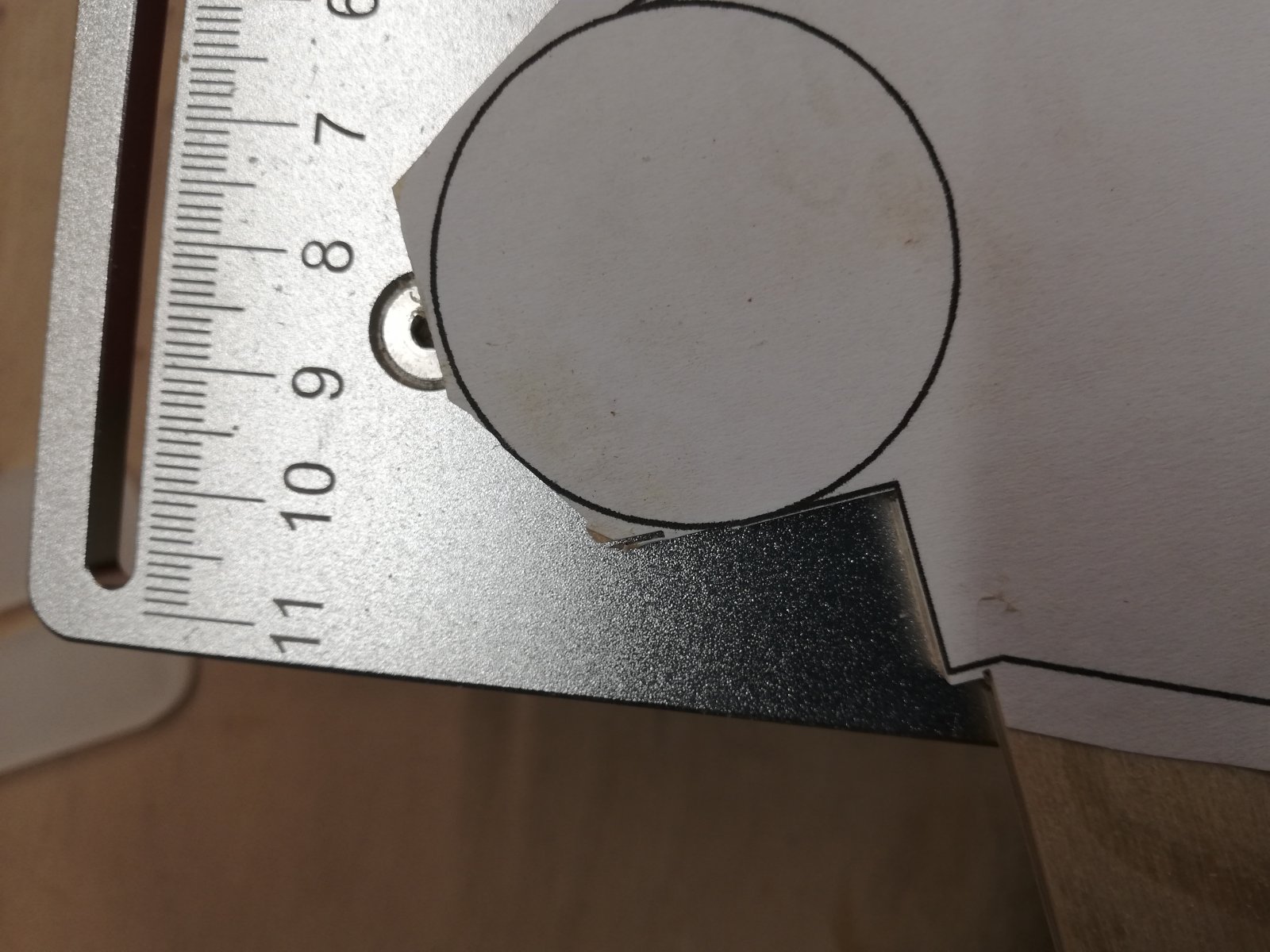

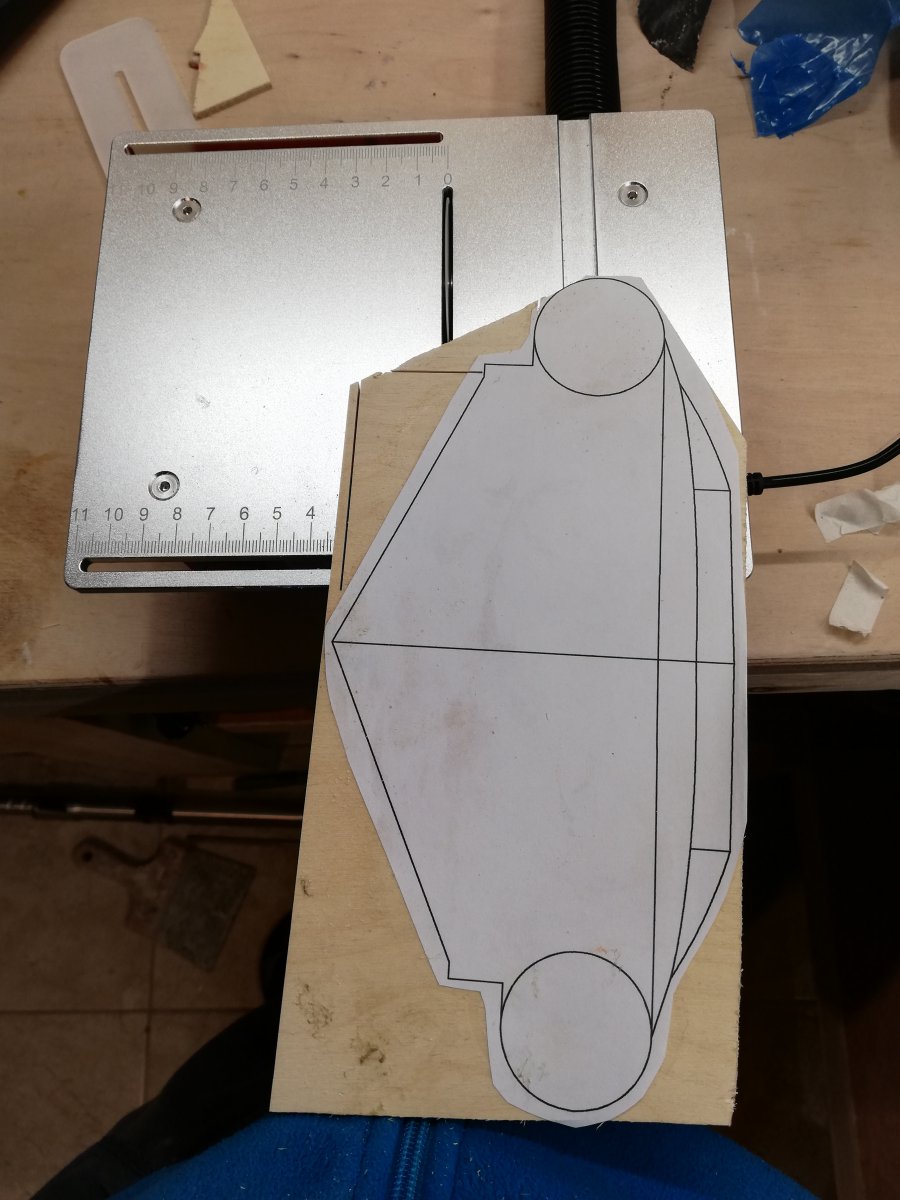

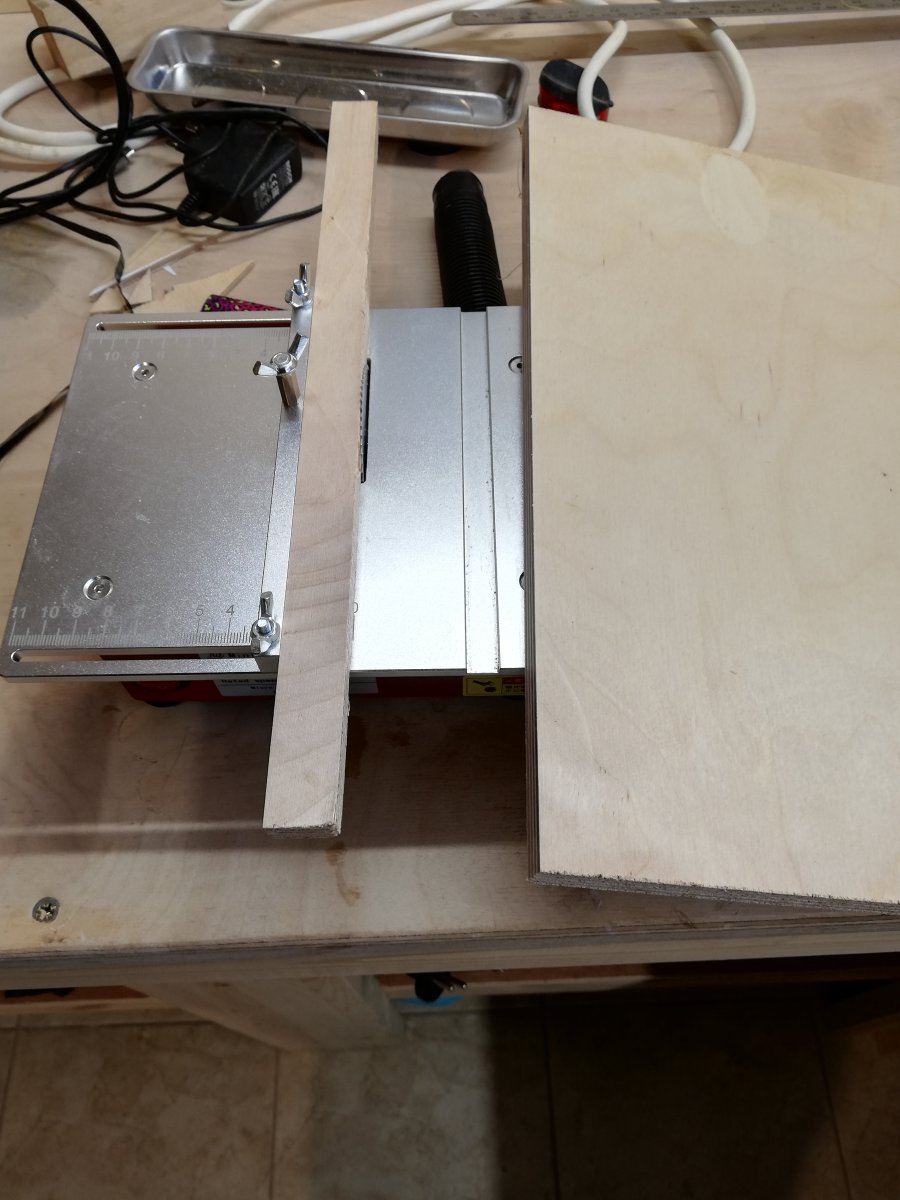

    I tried my new mini table disc. I cut the transom using 4mm plywood. Very satisfied, it is fast, accurate producing very clean cuts. Some photos...
    IMG_20211120_085714.jpg IMG_20211120_090326.jpg



    Unusual RC vindt dit leuk.
  6. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    This is very Interesting Jan. I thought that having the flattened surfaces would be a huge benefit to speed up the process and improve accuracy but I was wrong. Good to know, thank you.

  7. Unusual RC

    Unusual RC

    Lid geworden:
    19 mei 2004
    Berichten:
    1.743
    Locatie:
    Rijswijk, Zuid Holland
    This mini saw table was a bargain?
    Indeed a nice addition to your hobby-cave ;)
    I have seen them from Proxxon among other, high quality but also it breaks your bank!

  8. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    Yeah sure. One of the best buys I ever made. 63 € full aluminum, 4-5 extra disc's and highly accurate. Proxxon is about 4 times more expensive at least here in Greece. High Chinese quality :yes:

    Unusual RC vindt dit leuk.
  9. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece

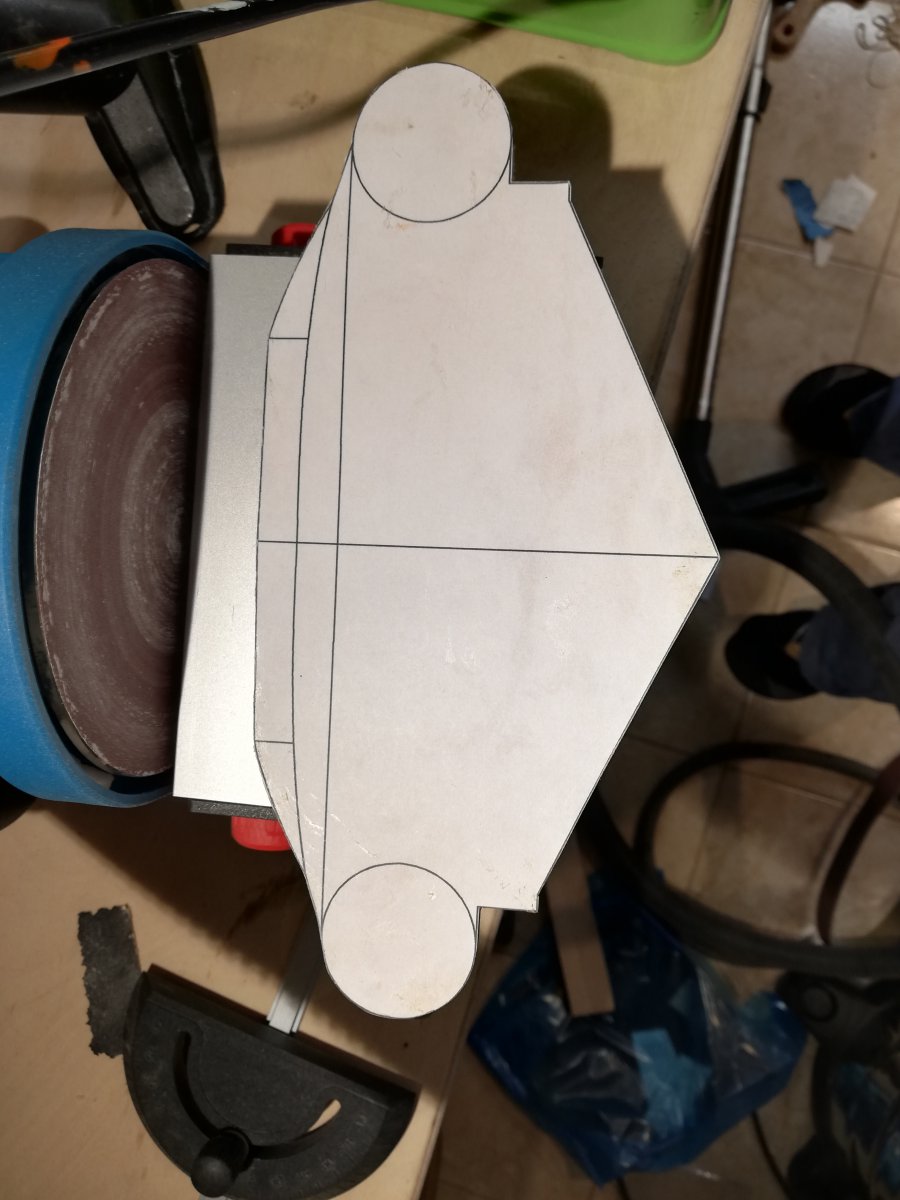

    Another useful tool is the table sander

    The final result

    I think it's quite accurate.

  10. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    Update #2
    Construction of the building board.
    Step 1: Printing the top view in multiple A4 papers using Fusion 360 (for those interested in how I print my plans in A4 printers, see also a useful video: ).

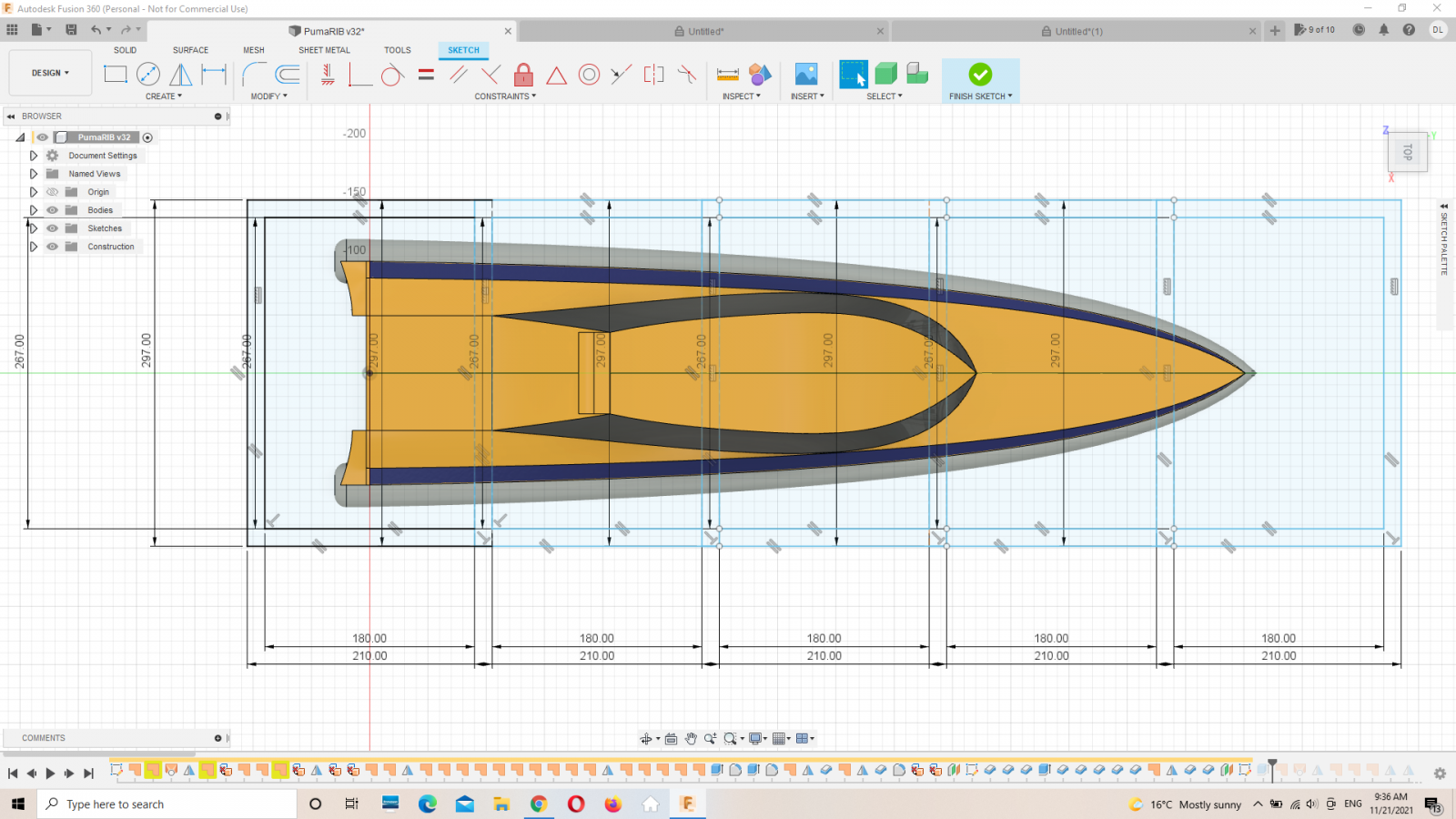

    a) Make a sketch with the required number of rectangles to cover the full top view of the hull using the dimensions of an A4 paper (210 mm X 297 mm). Be sure that the rectangles overlap each other, e.g. :

    b) Then File -> New drawing -> From Design then on the new tab, Create Drawing, select Sheet size: A4

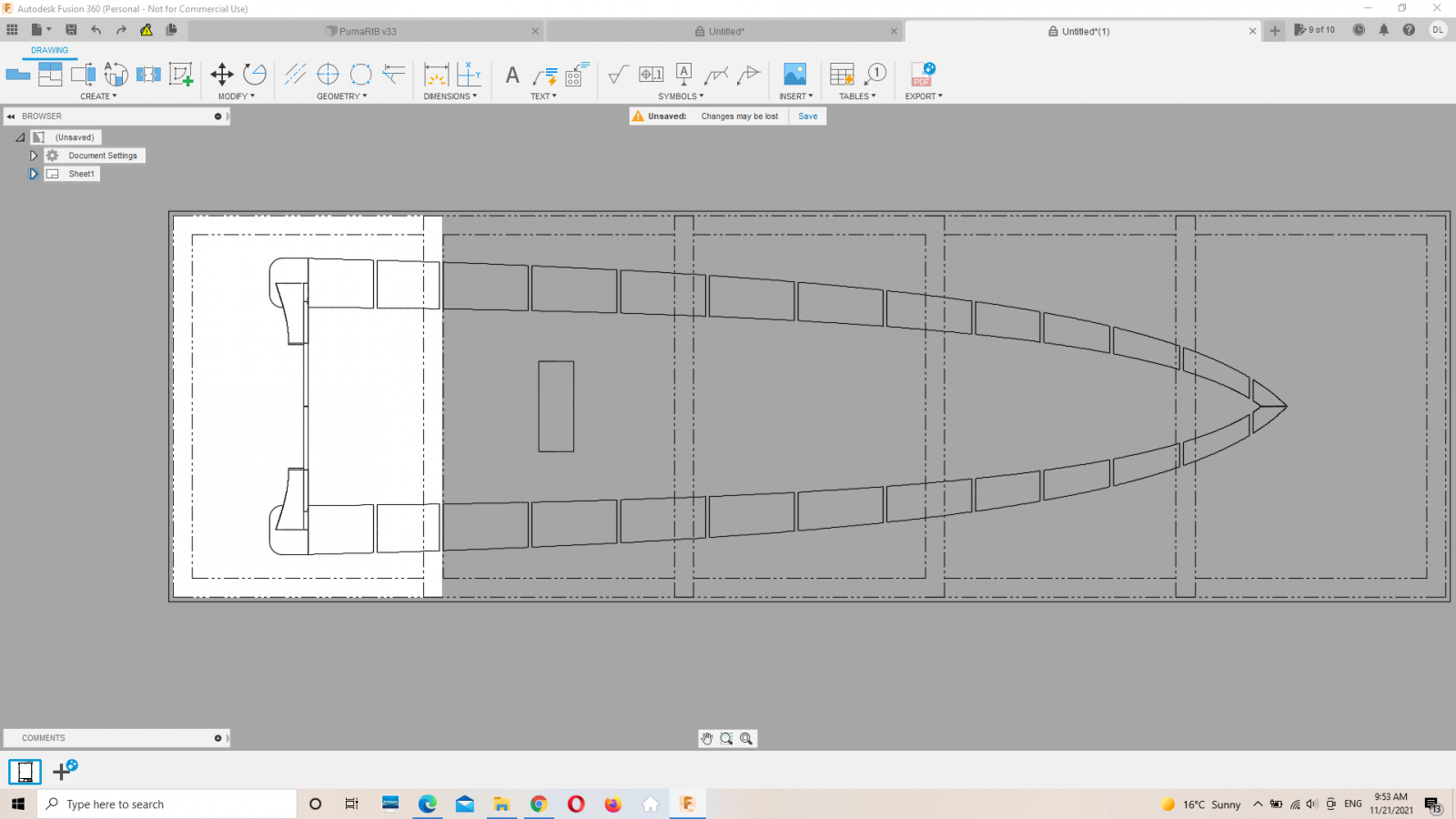

    c) Adjust the plan so as the rectangle coincides with the A4 paper, e.g.:

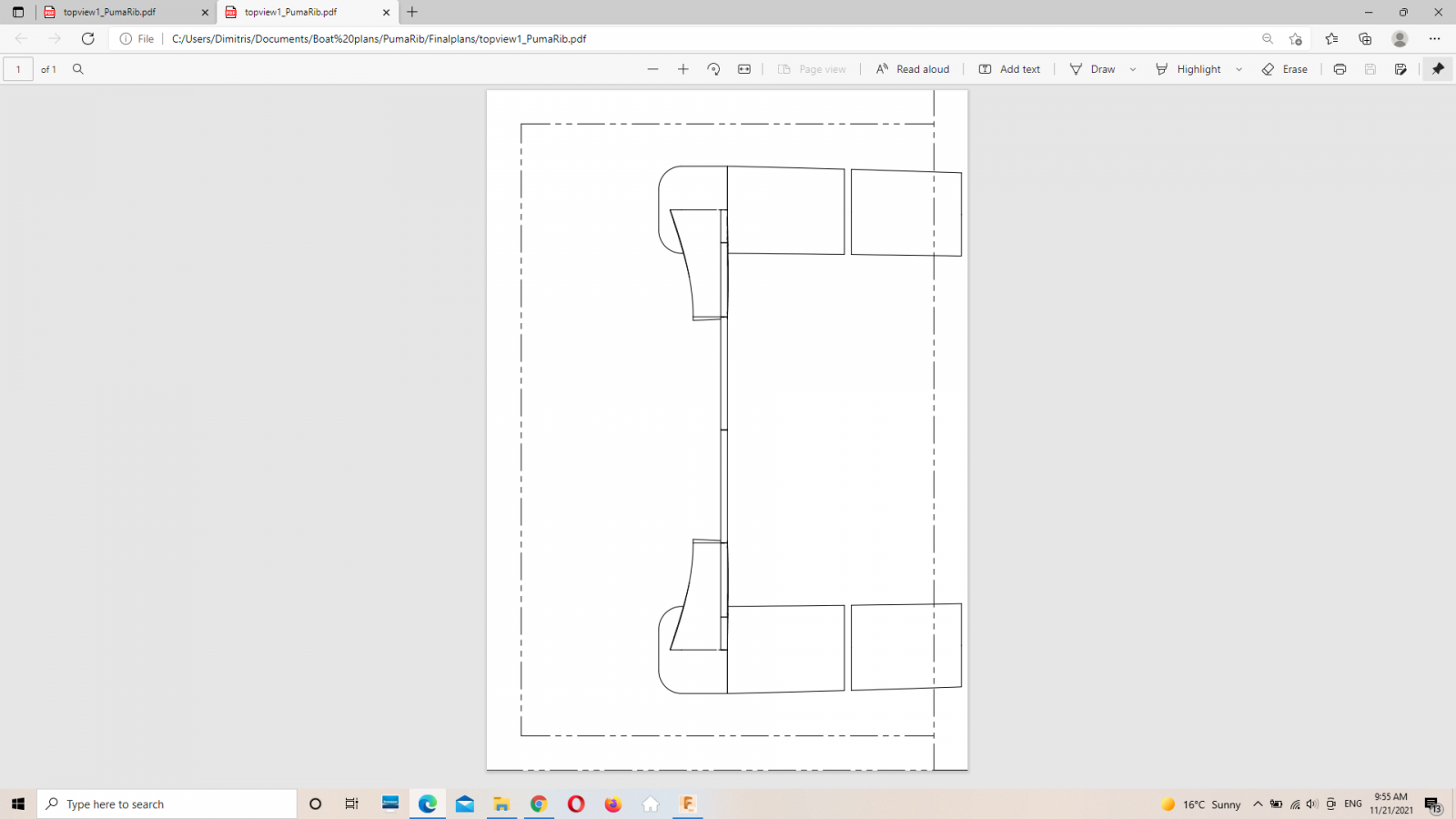

    d) Then File -> Print and you can either print as pdf and save it or send it to the printer. Here the first piece of the drawing on pdf:

    To be continued...

    Gerrit-Jan, Dirk Jan en Unusual RC vinden dit leuk.
  11. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    Step 2: assemble carefully the A4 papers on a piece of plywood securing with tape and checking the length.

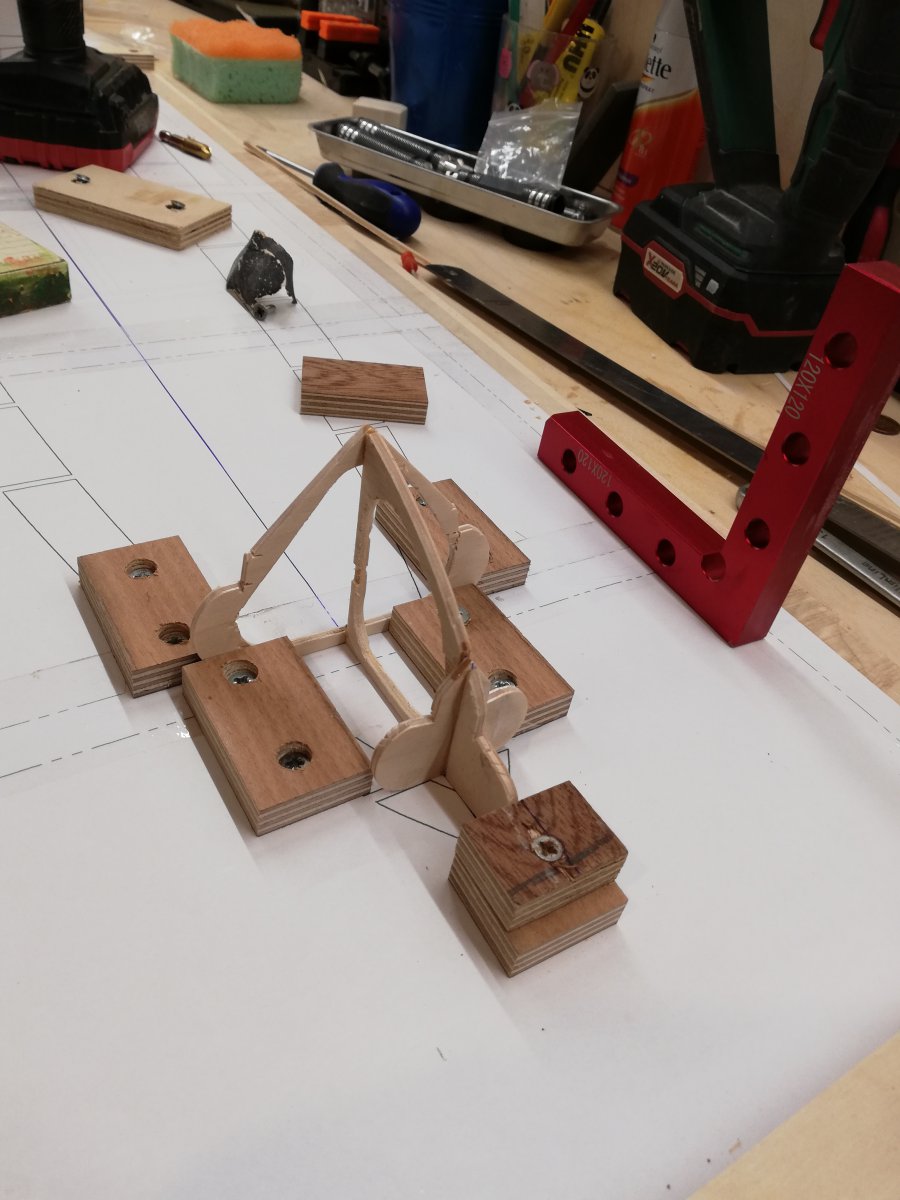

    Step 3: cut pieces of plywood and screw on the board exactly where the ribs should be according to the plan.


    Step 4: cut another slice of plywood to secure the ribs.

    Step 5: do that for another x times where x is the # of ribs... :confused: (a for loop :D)

    Thank you guys for your patience, have a nice Sunday afternoon..

    Tamiya1970, Unusual RC en Gerrit-Jan vinden dit leuk.
  12. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    Update #3
    Some progress with the ribs.


    Unusual RC en Dirk Jan vinden dit leuk.
  13. Dirk Jan

    Dirk Jan Forum veteraan

    Lid geworden:
    2 apr 2003
    Berichten:
    3.540
    Locatie:
    Veenendaal
    Nice work Dim. It seems you did not draw the stringers (wooden reinforcement lath) in the ribs. Wil you add them later on?
    Also, I think it wil be a challenge to make a tapered tube with the shape already in the wooden ribs. How will you make them? Skin between the ribs with wooden strips, or hard foam?
    I don't mean to criticize, just some questions to keep you sharp:) You add a lot of nice activity / projects in this forum!

    Tamiya1970 en Unusual RC vinden dit leuk.
  14. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    You are right Jan. I didn t manage to draw them even if I wanted to. For some reason the sweep did not work properly in Fusion...:confused:. You know I am still a beginner...and some things I try they just don t worko_O. I don't know if I add them later.

    Regarding the tubes I am planning to add hard foam between the ribs and sand them down carefully to the wooden part just like cosy. I have done something similar at the beginning of the project with balsa and seemed to work nicely (see my first photos)

    I think that the hard foam will strengthen the hull and maybe the stringers are not necessary. Moreover, I am planning to apply fiber and epoxy on both sides of the hull plus the ribs are quite dense. I also plan to fill with polyurethane foam at the bow. All the above-mentioned I think that will strengthen the hull.

    No worries Jan, I do not take it as critisim but as sharing opinions and experiences. ;) thank you for your nice words.

    Dirk Jan vindt dit leuk.
  15. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    Update #4.

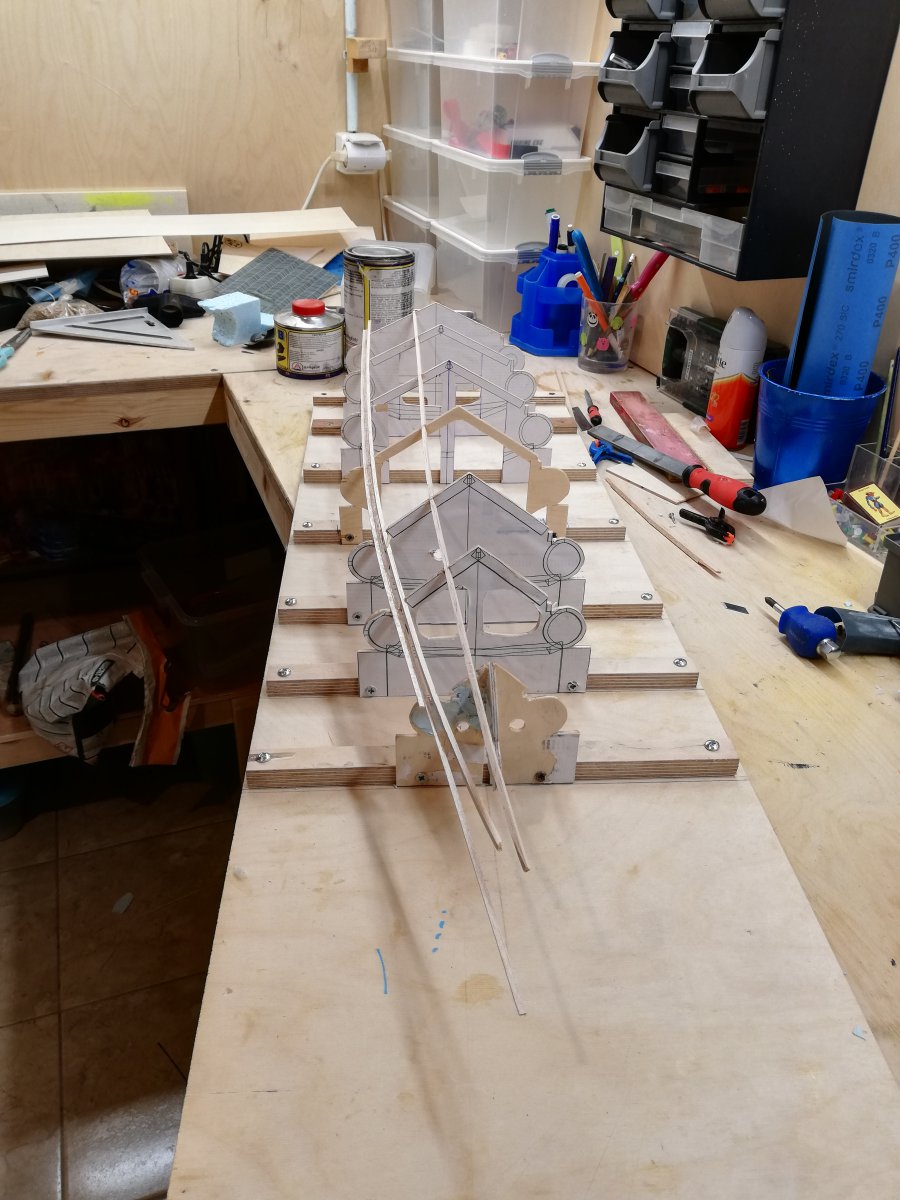

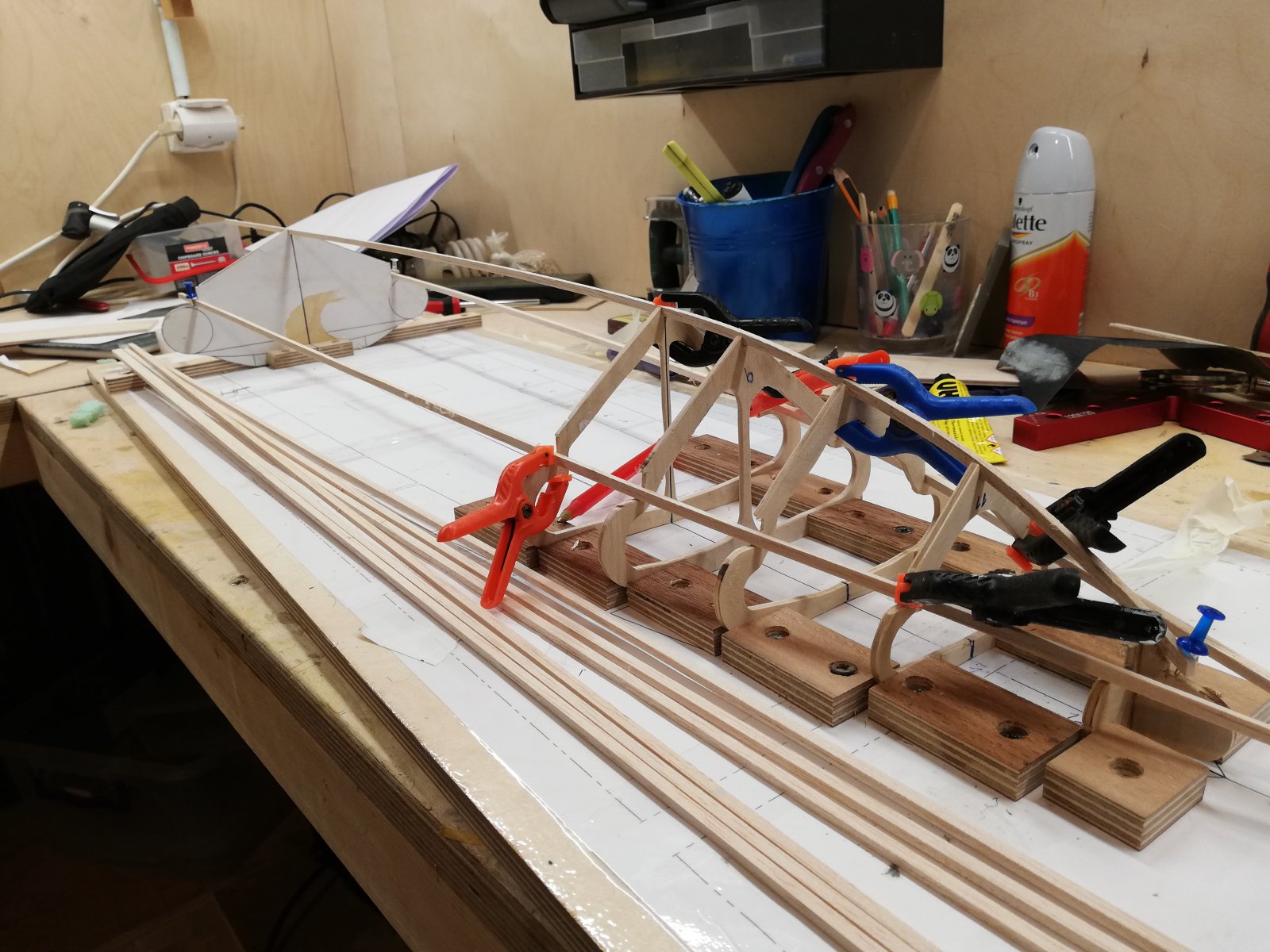

    I cut a number of 4x3 stringers with my mini table saw to enhance the hull as discussed with Jan and I also cut some more ribs. The plans changed slightly to account for the stringer cuts to the ribs.
    I left the center stringer into the water overnight to be able to bend it smoothly.


  16. Dirk Jan

    Dirk Jan Forum veteraan

    Lid geworden:
    2 apr 2003
    Berichten:
    3.540
    Locatie:
    Veenendaal
    Looking good!

    Dim L vindt dit leuk.
  17. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    Update #5.

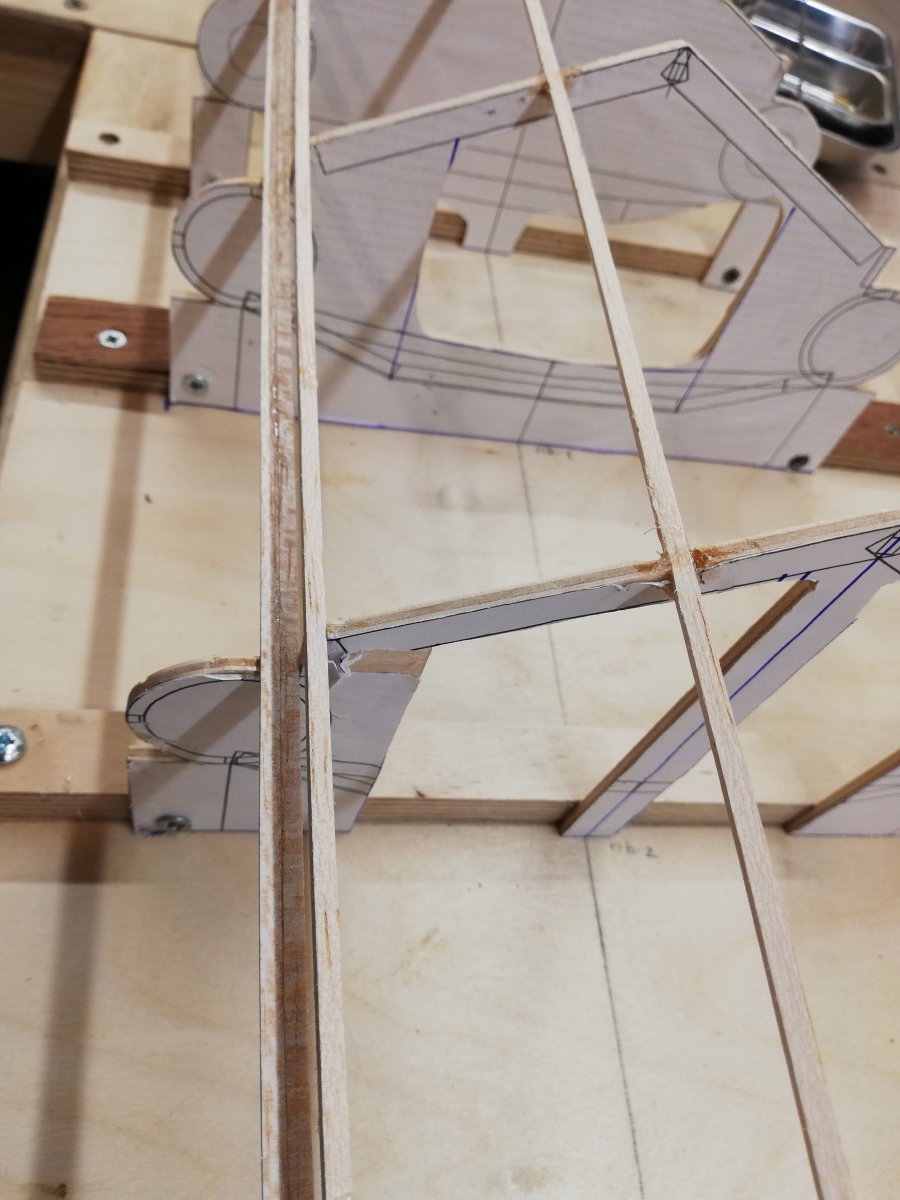

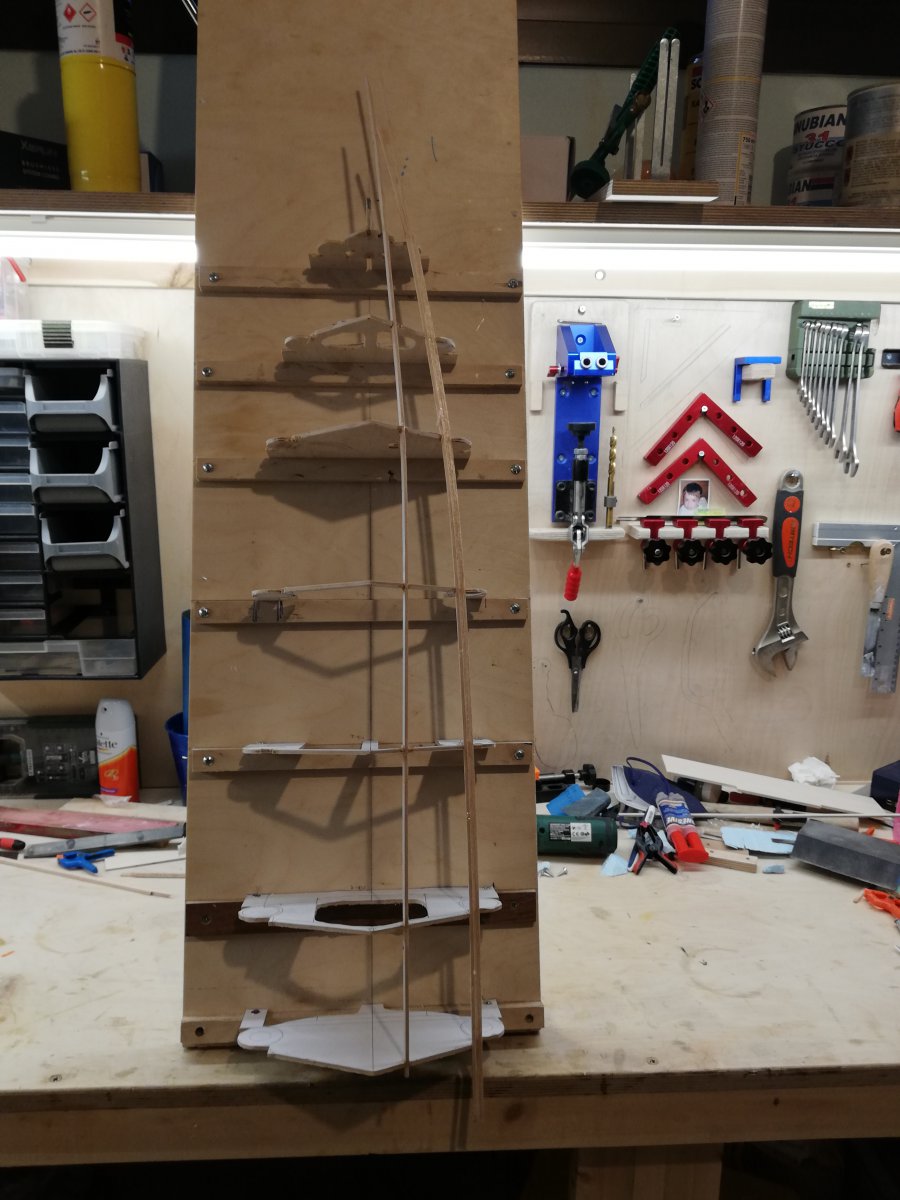

    I changed somewhat the design of the hull and I had to re-cut the ribs and re-construct the construction board. This is the progress I ve made so far. IMG_20211228_161642.jpg



  18. Georgeoepts

    Georgeoepts

    Lid geworden:
    26 jun 2020
    Berichten:
    10
    Locatie:
    almere
    Tamiya1970 en Dim L vinden dit leuk.
  19. Dim L

    Dim L

    Lid geworden:
    18 aug 2021
    Berichten:
    888
    Locatie:
    Athens, Greece
    #update 6.

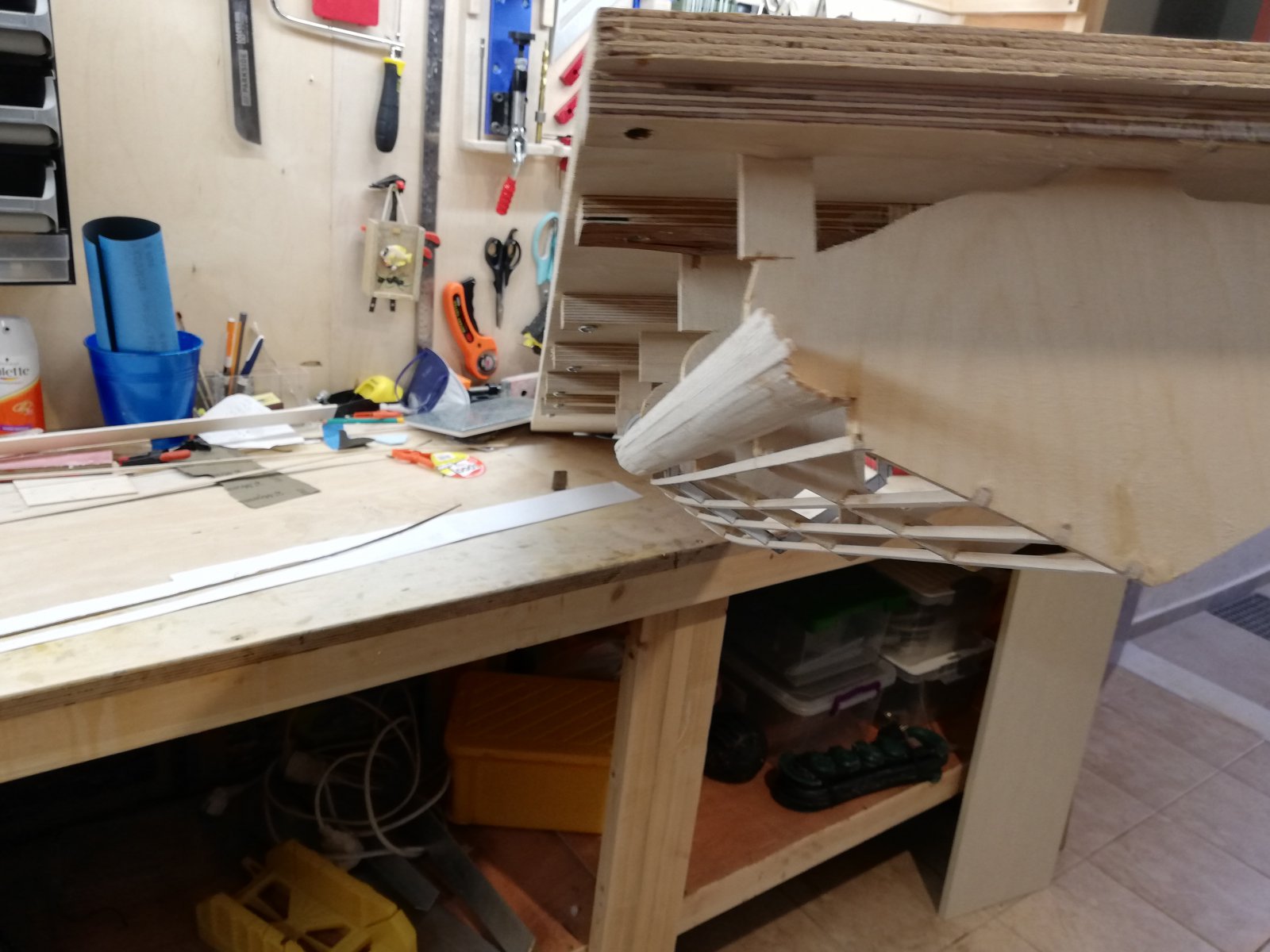

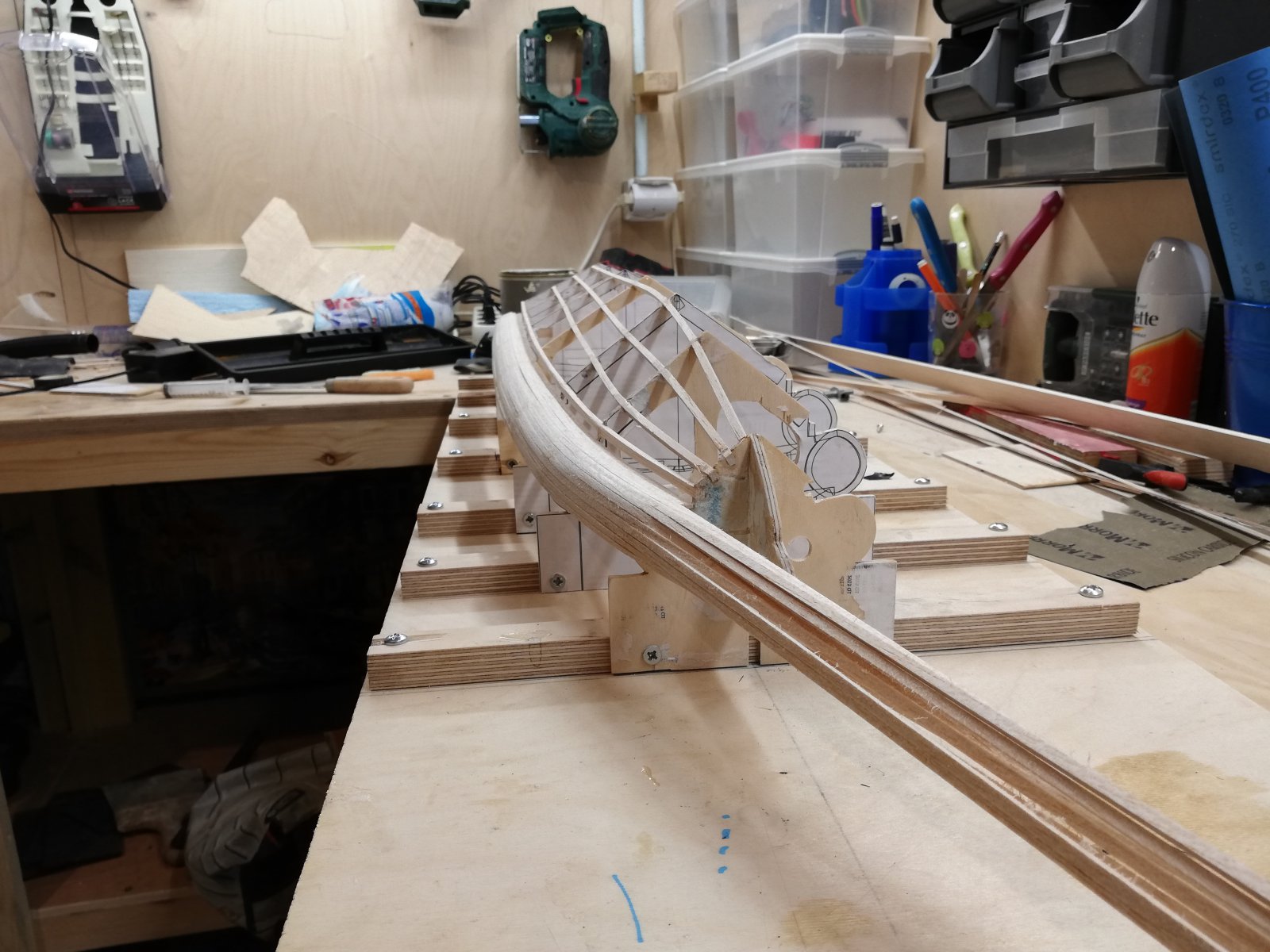

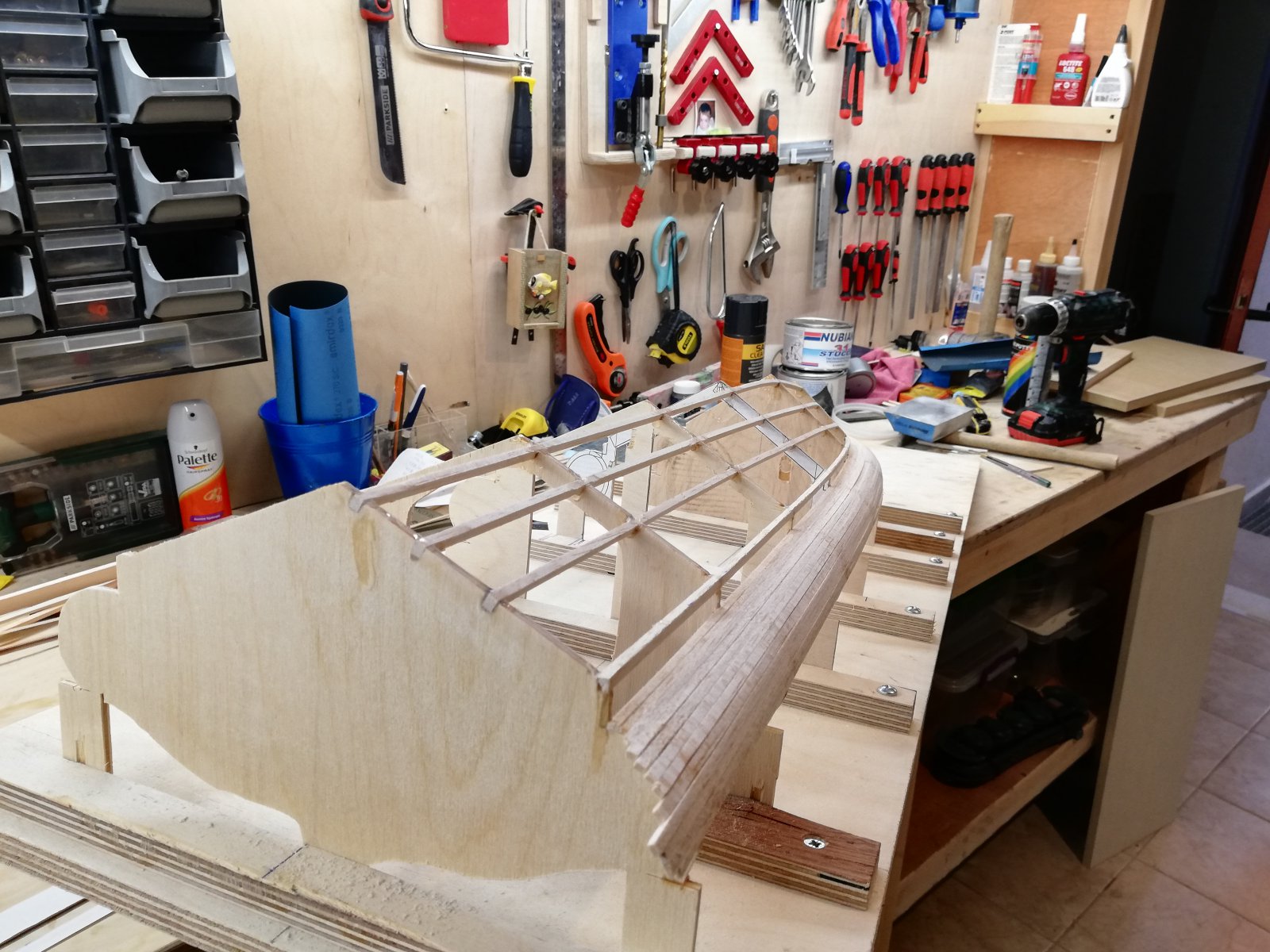

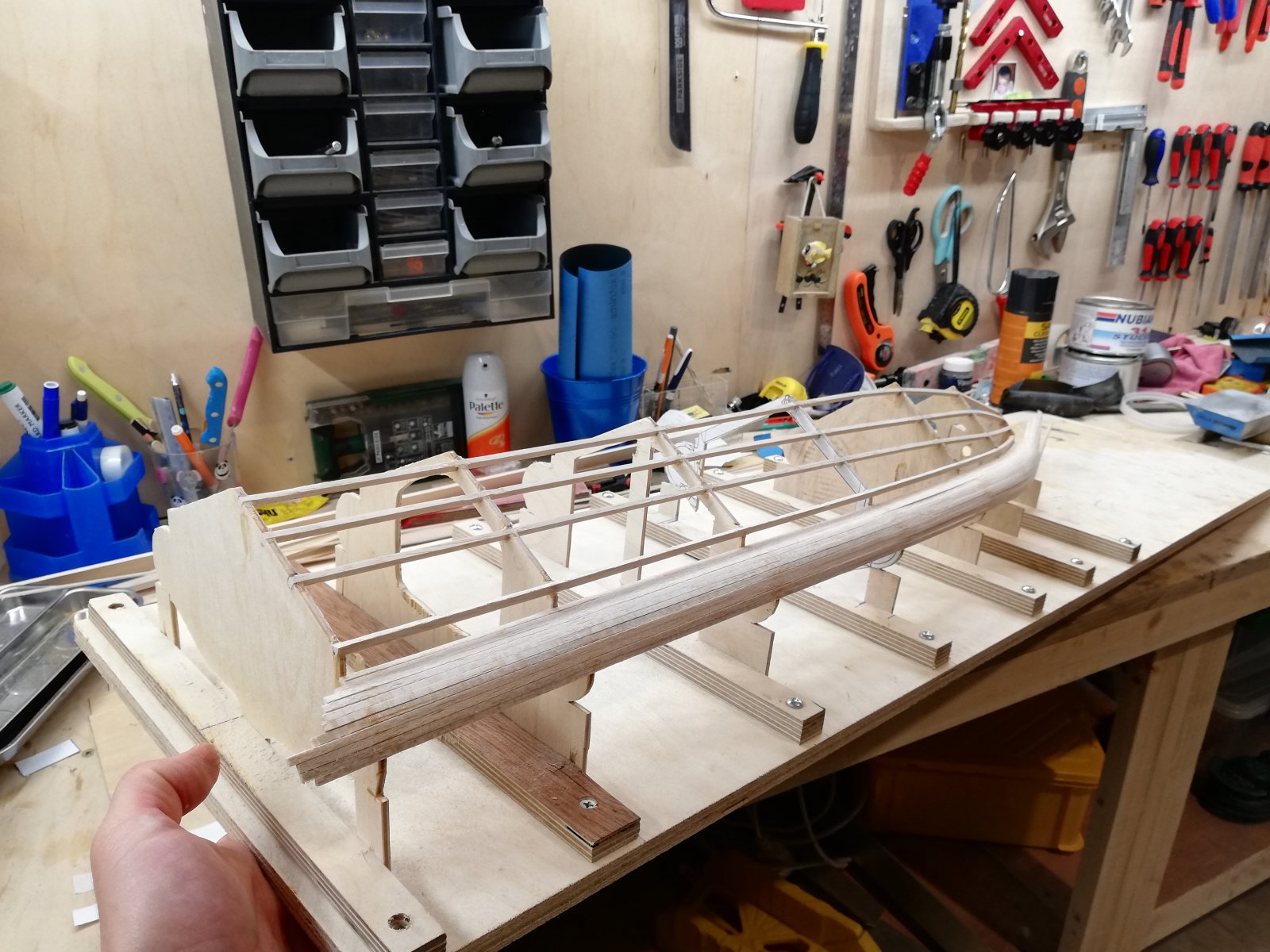

    Starting with the sponsors using 3x2 balsa stripes and CA glue.





    Dirk Jan en Tamiya1970 vinden dit leuk.
  20. Unusual RC

    Unusual RC

    Lid geworden:
    19 mei 2004
    Berichten:
    1.743
    Locatie:
    Rijswijk, Zuid Holland
    I love it when your CAD model comes to life in the real world!
    Most of the time I am shocked by the true size ;)
    From a screen or a 2D print it is still hard to get a good feel of the true size
