Mijn eerste GR130

Discussie in 'Turbine aangedreven' gestart door MadRay66, 24 mrt 2012.

  1. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway
    Small step for RC turbine, big step for me :)

    EGT and RPM now reading and displaying correctly :D

  2. G J Broekhuizen

    G J Broekhuizen

    Lid geworden:
    12 jul 2004
    Berichten:
    1.361
    Locatie:
    Elburg

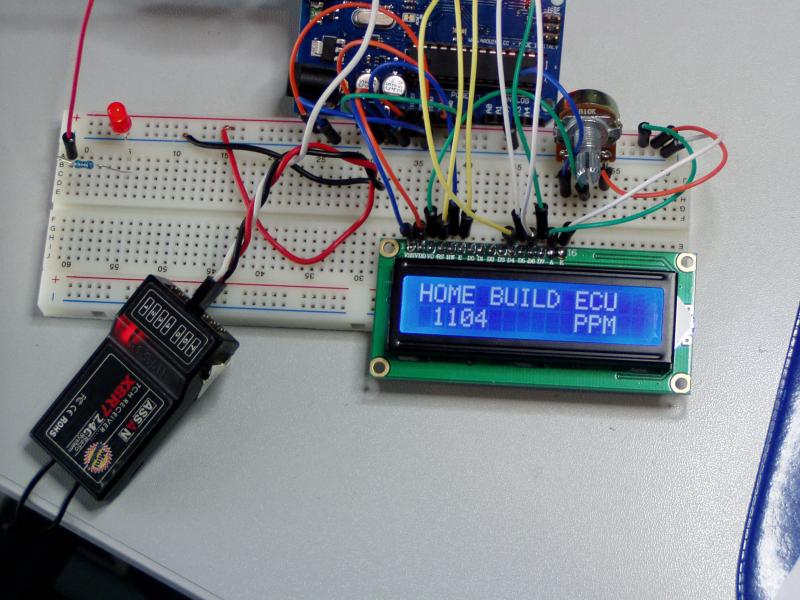

    I have also come this far. It is not easy

  3. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway
    I am struggling, pulling hairs but also having fun :)

    Do you have any input on a good hall sensor to use / magnet part number?
    I am using a generic U1881 hall sensor and some small magnets for testing purposes (2x2mm) but this configuration is not powerful enough to detect RPM from <30mm distance the turbine will require.

  4. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway

  5. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway
    BTW - my RPM circuit with hall sensor, will it be able to read 6-digit RPM values?

    Laatst bewerkt: 7 jan 2019
  6. G J Broekhuizen

    G J Broekhuizen

    Lid geworden:
    12 jul 2004
    Berichten:
    1.361
    Locatie:
    Elburg
    Xicoy. magnet ring and rpm sensor.

  7. G J Broekhuizen

    G J Broekhuizen

    Lid geworden:
    12 jul 2004
    Berichten:
    1.361
    Locatie:
    Elburg
  8. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway
    Thank you, hopefully the magnets will arrive soon.
    What functions have you been able to incorporate into your ECU? Streaming data and/or functions?

  9. G J Broekhuizen

    G J Broekhuizen

    Lid geworden:
    12 jul 2004
    Berichten:
    1.361
    Locatie:
    Elburg
    only. RPM. PPM.and TEMPERATURE read.

  10. MadRay66

    MadRay66

    Lid geworden:
    10 feb 2011
    Berichten:
    274
    Locatie:
    Dordrecht
  11. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway
    Thank you very much!
    Sent you an email Ray :)

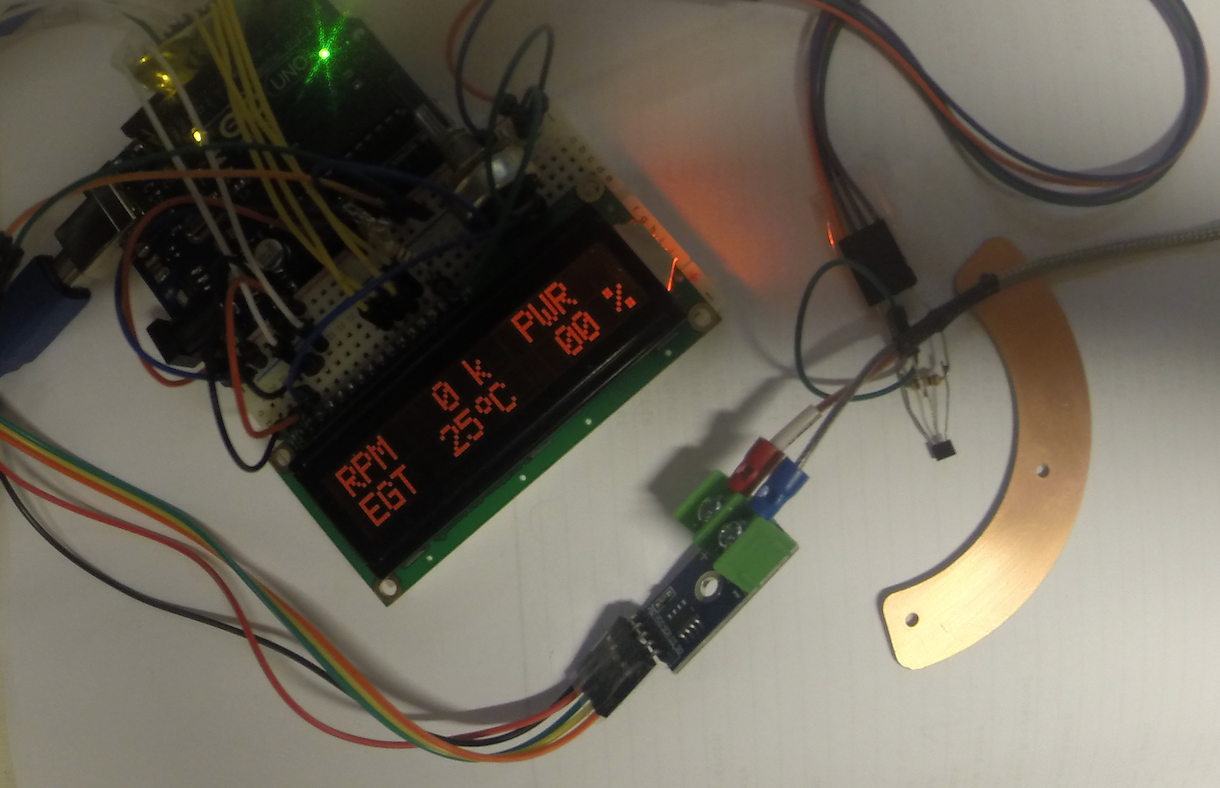

    ECU Monitor prototype one solid step furter :). Step 1 complete.
    Next step in this department is to emulate a servo and let it drive the PWR value and govern voltage for the fuel pump :)

    Screen Shot 2019-01-09 at 00.42.10.png

  12. Tadango

    Tadango Forum veteraan

    Lid geworden:
    25 jun 2003
    Berichten:
    15.138
    Locatie:
    Groningen
    Why emulate a servo?

  13. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway
    To make a ground station to operate the turbine, without a radio ;)
    At the moment I don't have one as I sold my MC24 off a few years back. :rulez:

  14. Tadango

    Tadango Forum veteraan

    Lid geworden:
    25 jun 2003
    Berichten:
    15.138
    Locatie:
    Groningen
    Why not build a stand alone / test fuction in the ECU? :)

  15. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway
    Hehe, certainly possible and I haven't carved anything in stone yet :). I am waiting for Mosfets to drive a fuel pump, just got to make the pump first :hammer:

  16. MadRay66

    MadRay66

    Lid geworden:
    10 feb 2011
    Berichten:
    274
    Locatie:
    Dordrecht
    Looking good, Haldor. :thumbsup:

  17. Halair

    Halair

    Lid geworden:
    6 nov 2018
    Berichten:
    32
    Locatie:
    Norway
    Minor update, no pictures yet.

    The stainless steel needles arrived (5pcs 180mm long) so now I switch drive from software to hardware :)

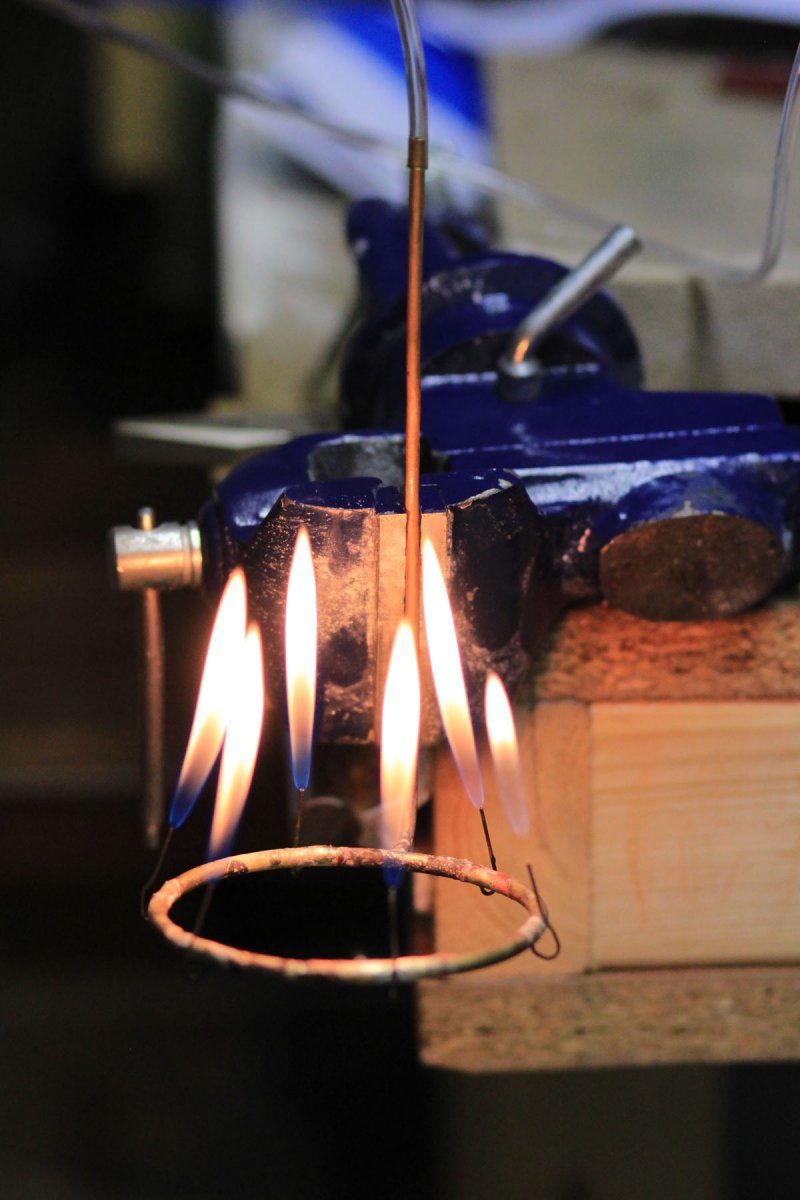

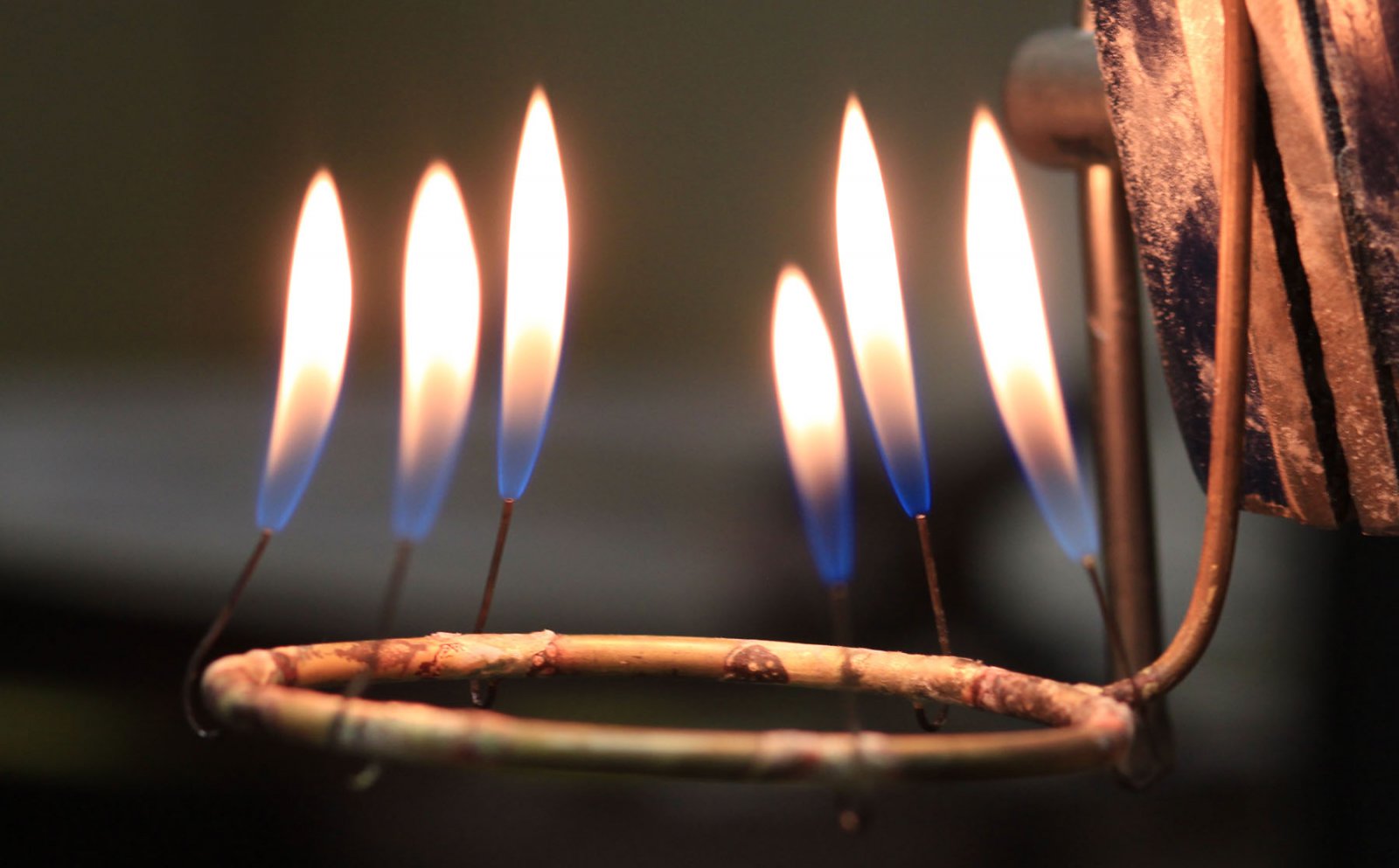

    Next up will be learning how to braze brass/steel together! The evaporator sticks are cut to length and I need to form their flanges prior to spot welding these to the CC ring. Hopefully the CC and fuel delivery system will be completed this week :D
