    Hello Almal

    Time again for a few updates on the Haarlem.

    In my previous post I mentioned that the verschansing has to go in next. The following photographs show the sequence of events:

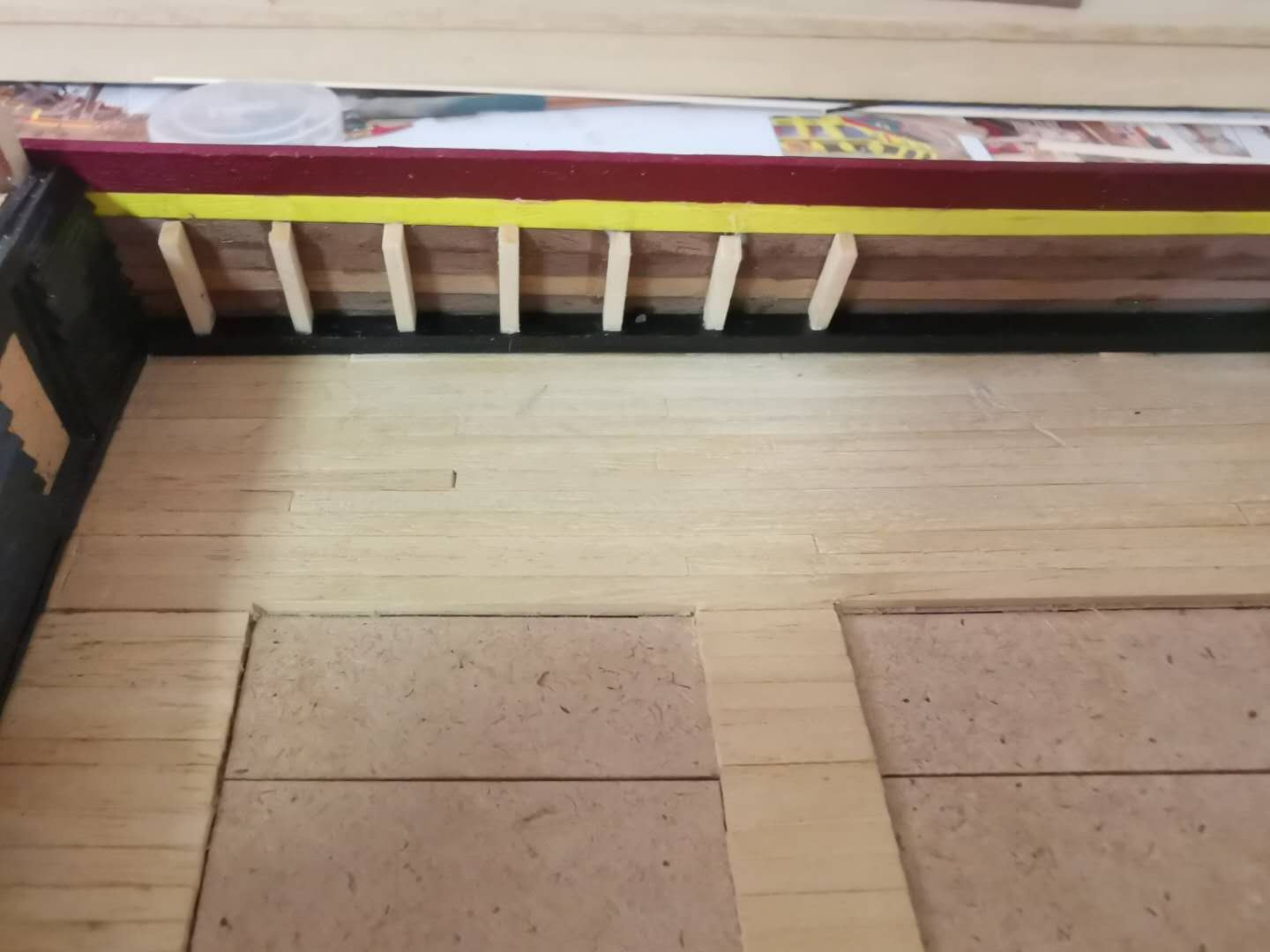

    Build 317.jpg

    So the whole process was started. On the Kolderstok drawings these slats are supposed to be installed approximately 5mm apart, but I stretched the distance to 1 cm in case I decide to place the cannons here. 5mm would just have been too close for that. As it is the sides are VERY solid with the bracing in place.

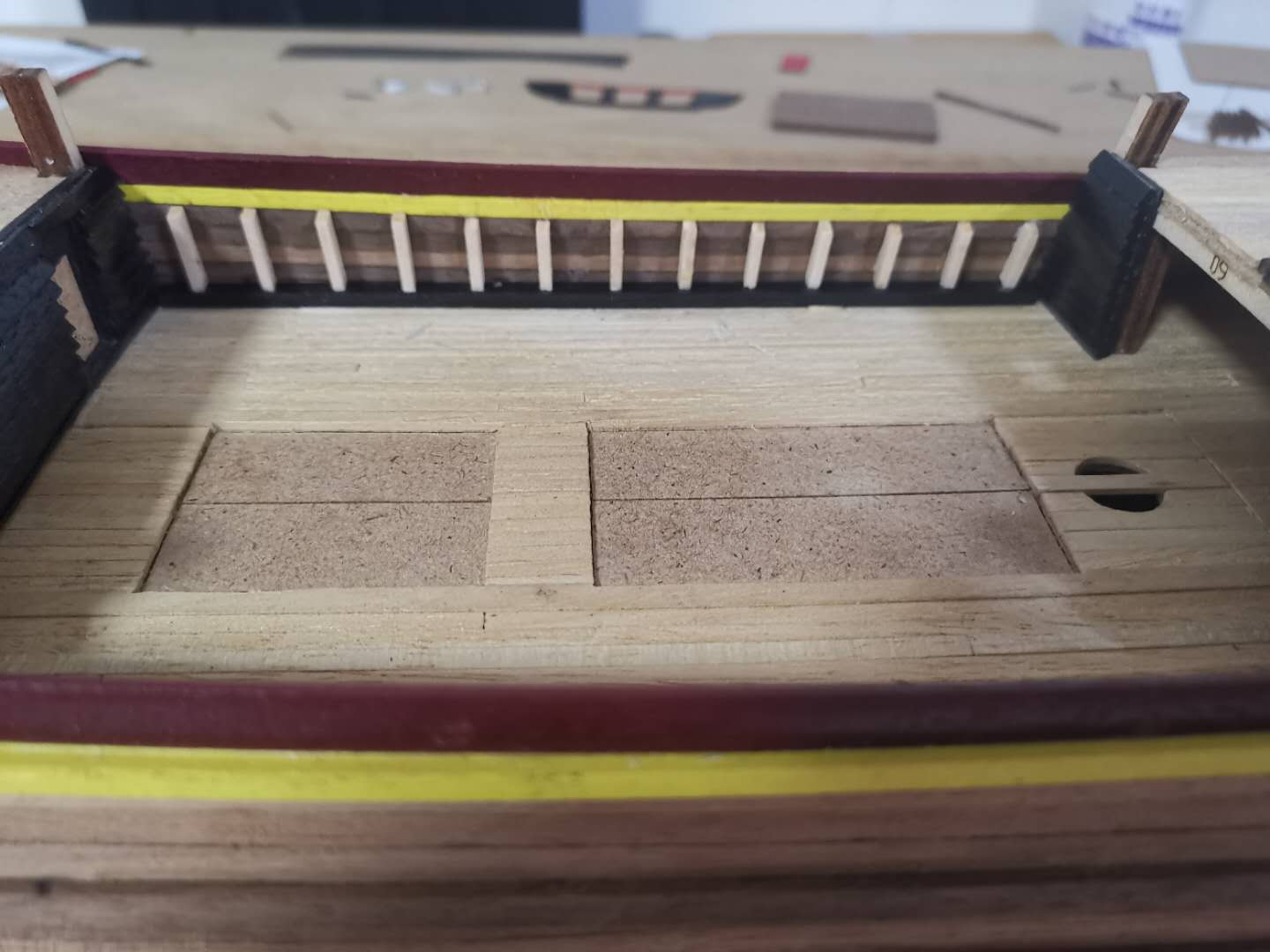

    Build 318.jpg

    Build 319.jpg

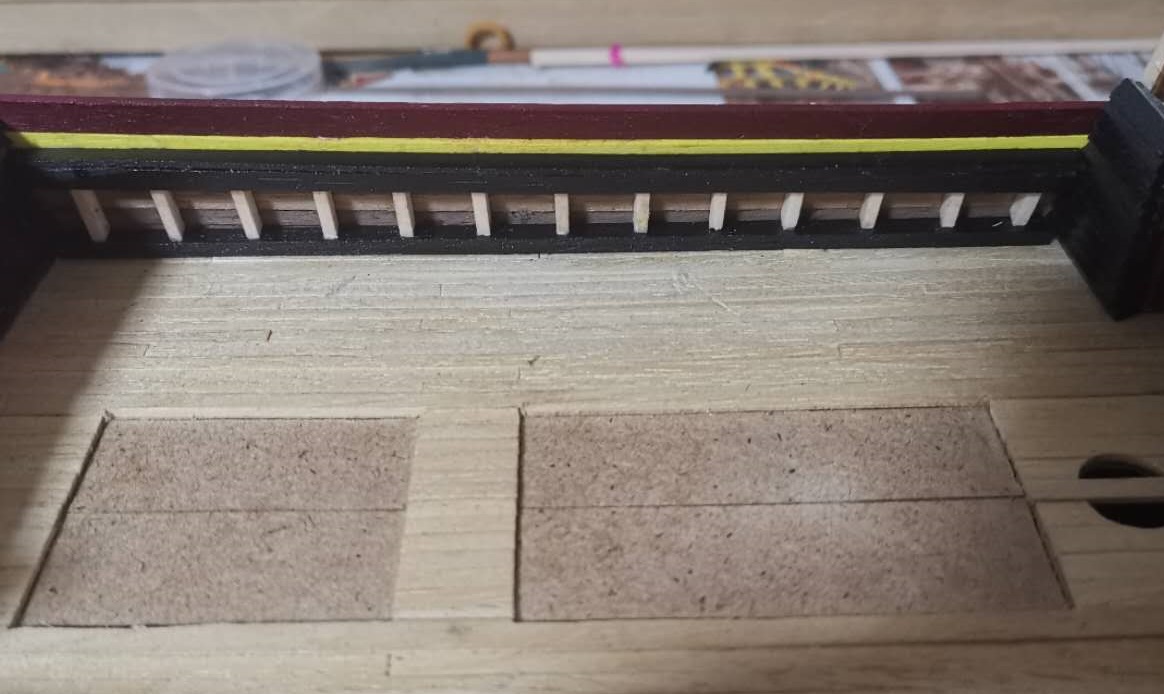

    The two top planks (4mm x 1mm) were added - one horizontal on top of the slats and one vertically mounted just below the top one. There are still more slats to go on top of the horizontal plank which are then topped off with another horizontal plank. However, for now, this is far as I wanted to go. Both sides have been completed.

    Build 321.jpg

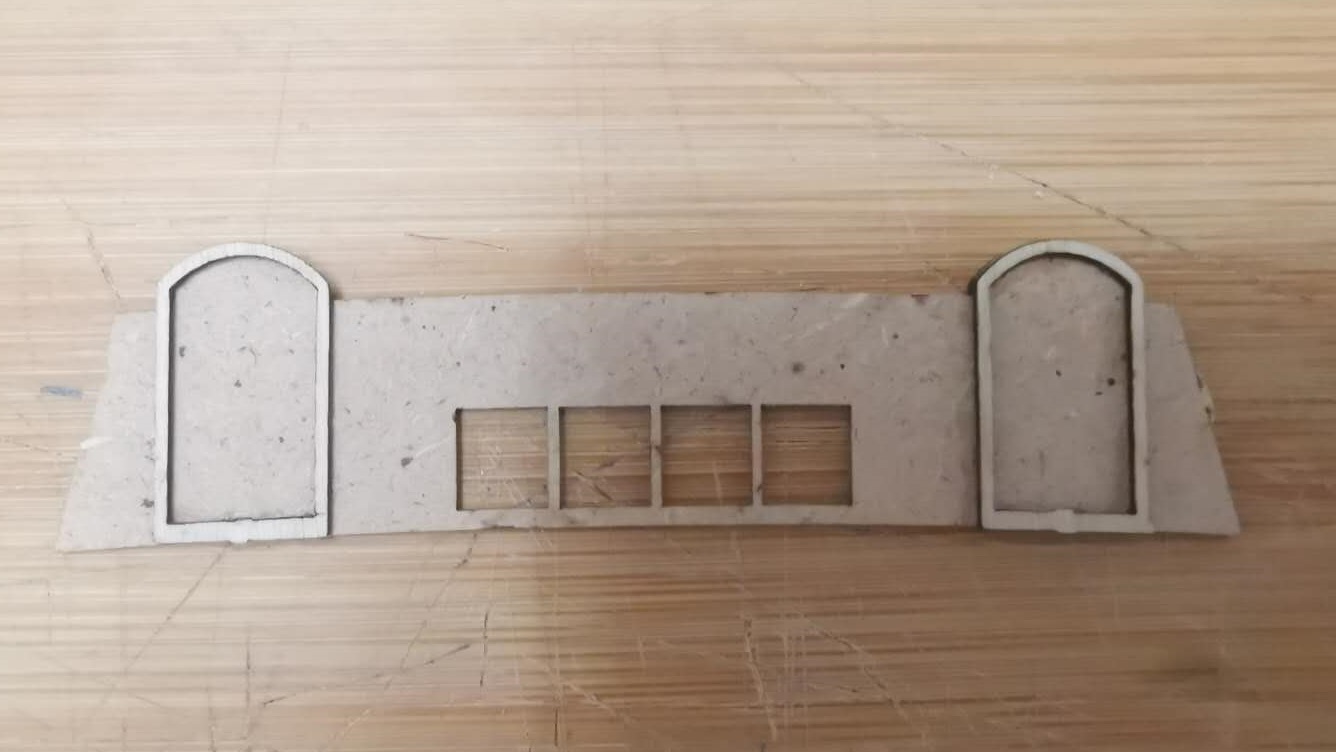

    This picture shows the start of construction of the halfdek schot with door sills in place. As the windows are open and one is able to see through them quite clearly, the area behind the schot had to be covered. Left as it is, it would give an unfinished look so I made the following plan:

    Build 323.jpg

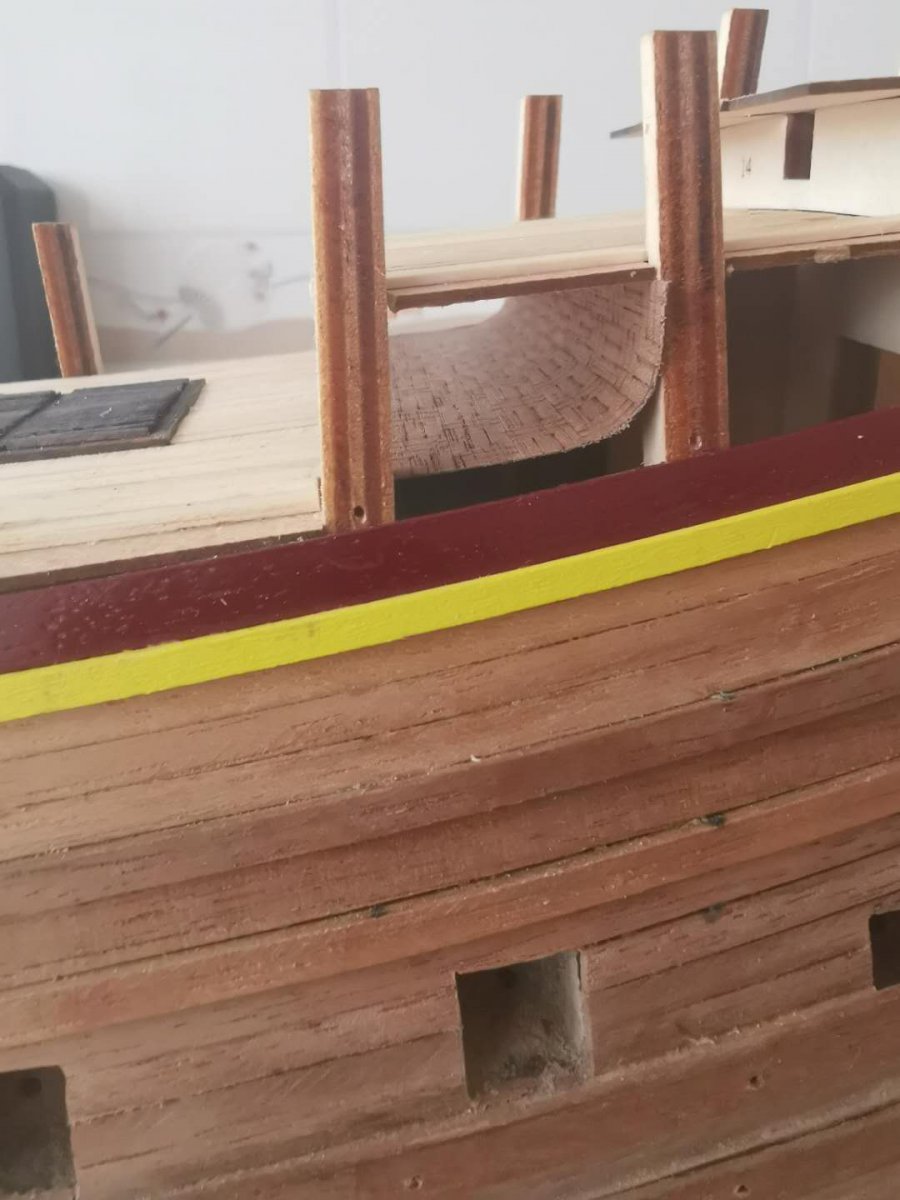

    A piece of bamboo sheeting was cut to size, folded and inserted into the area behind where the schot goes. This worked well and no more of the bare spanten or untrimmed planking is visible.

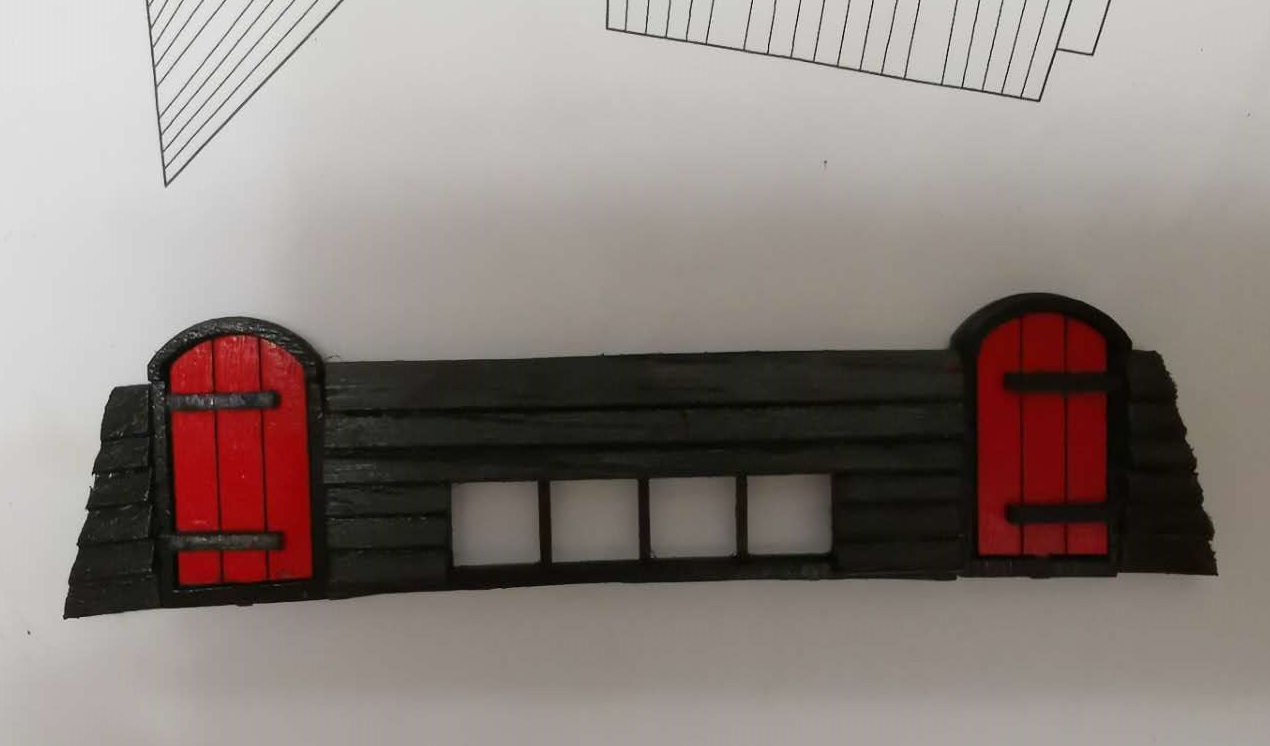

    Build 322.jpg

    The finished halfdek schotl. I still have to mount handles (ringetjies) for the doors but am looking for the right sized rings. Everything I could find until now is simply too big.

    Build 324.jpg

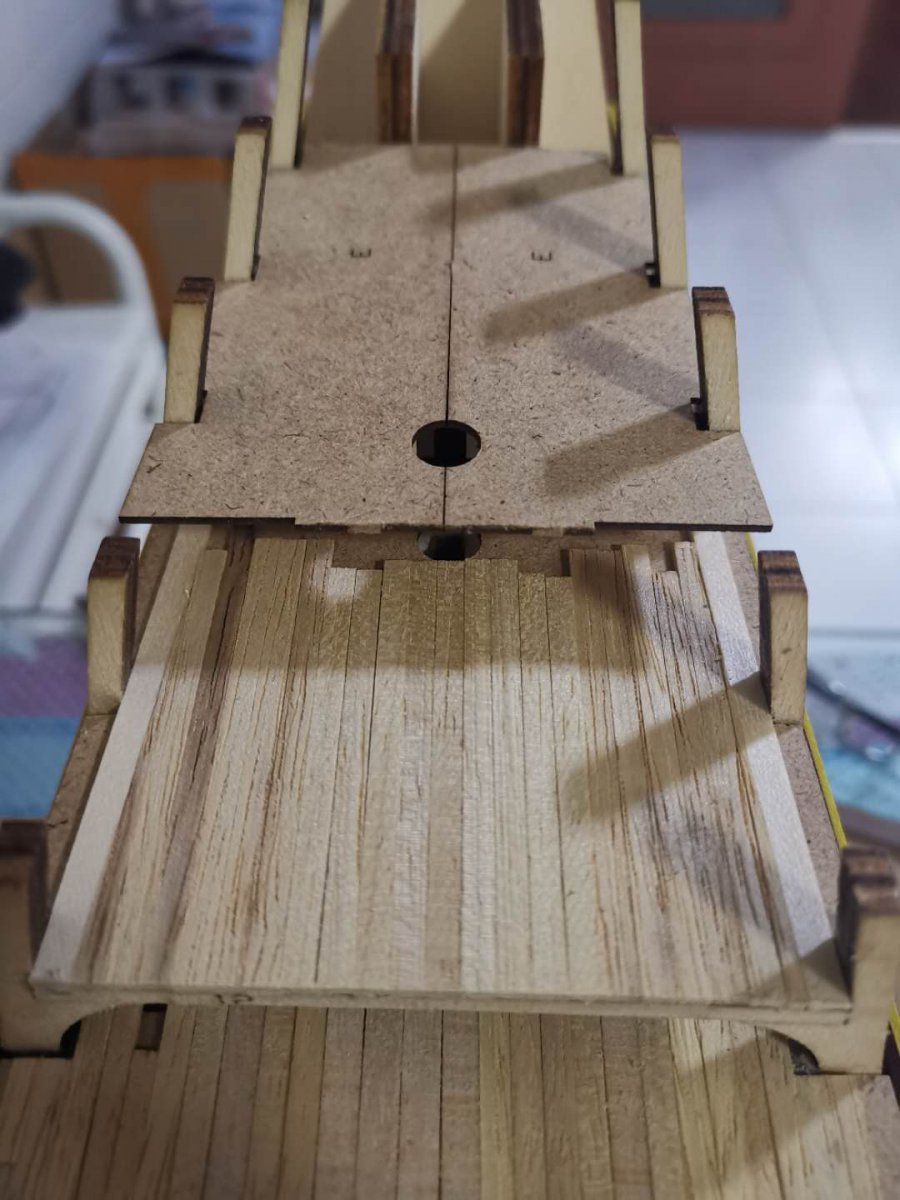

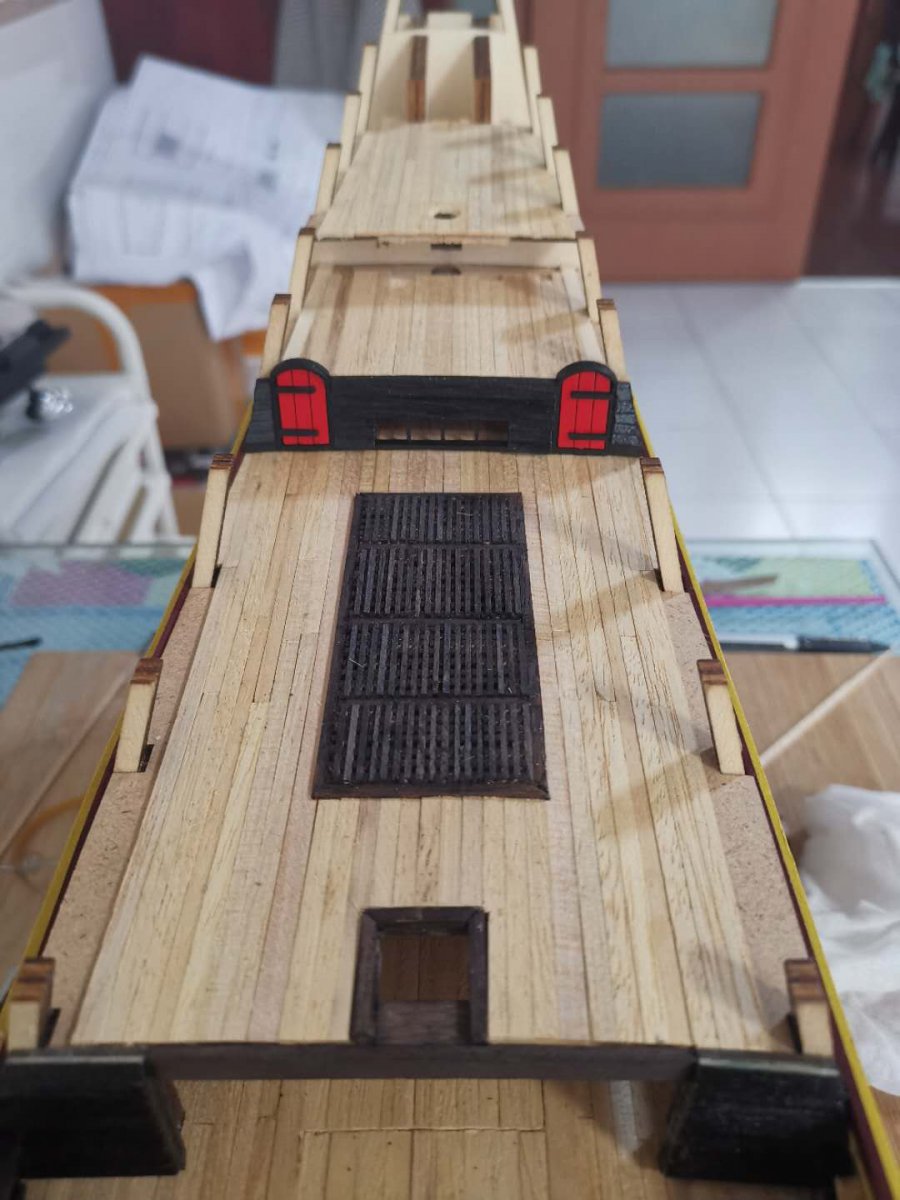

    The installed schot on the halfdek. Behind the halfdek, the planked stuurplecht dek is visible. I have also placed a pre-bent 6mm x 1.5mm notenhout plank that was treated with beits to finish off the halfdek.

    Build 325.jpg

    Close-up of the planked stuurplecht dek.

    Word vervolg.

    Marc w, Sjors Blomberg, Jaques en 3 anderen vinden dit leuk.
  9. Heinrich

    Heinrich

    Lid geworden:
    26 jan 2020
    Berichten:
    463
    Locatie:
    China

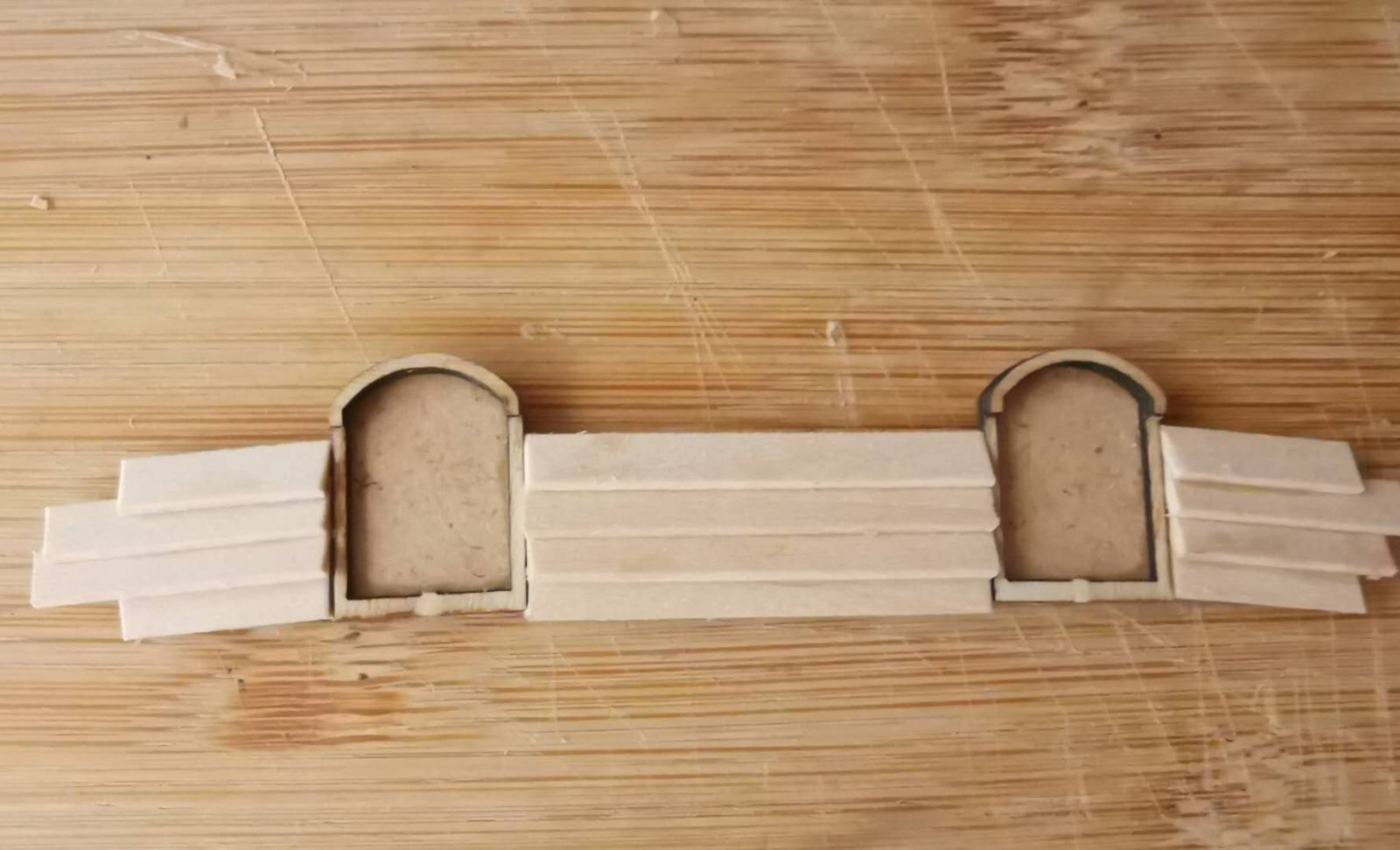

    Next up was the stuurplecht schot.

    Build 327.jpg

    Planking completed - ready to be trimmed, sanded and painted.

    Build 330.jpg

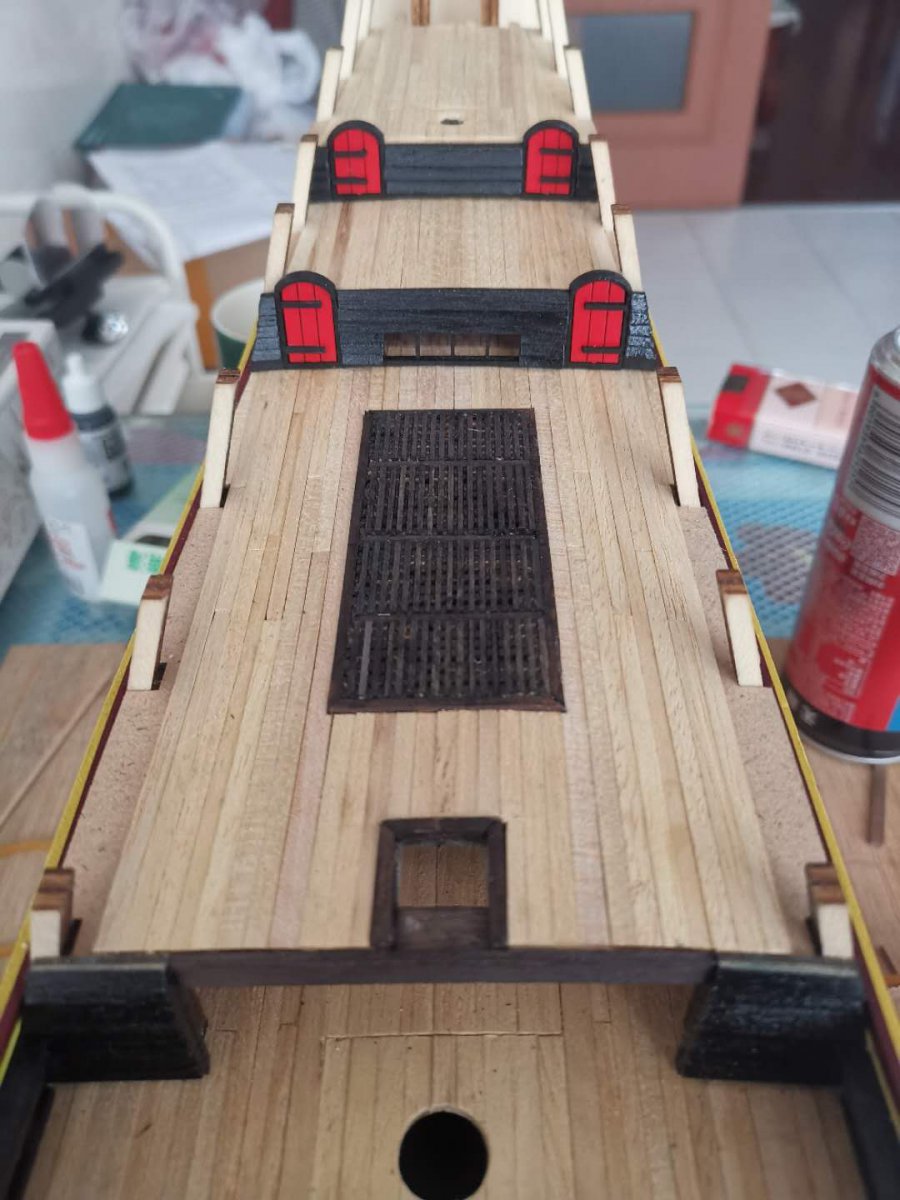

    Stuurplecht schot also installed on the stuurplecht dek. Behind that, the planked kampagne dek is visible.

    Build 331.jpg

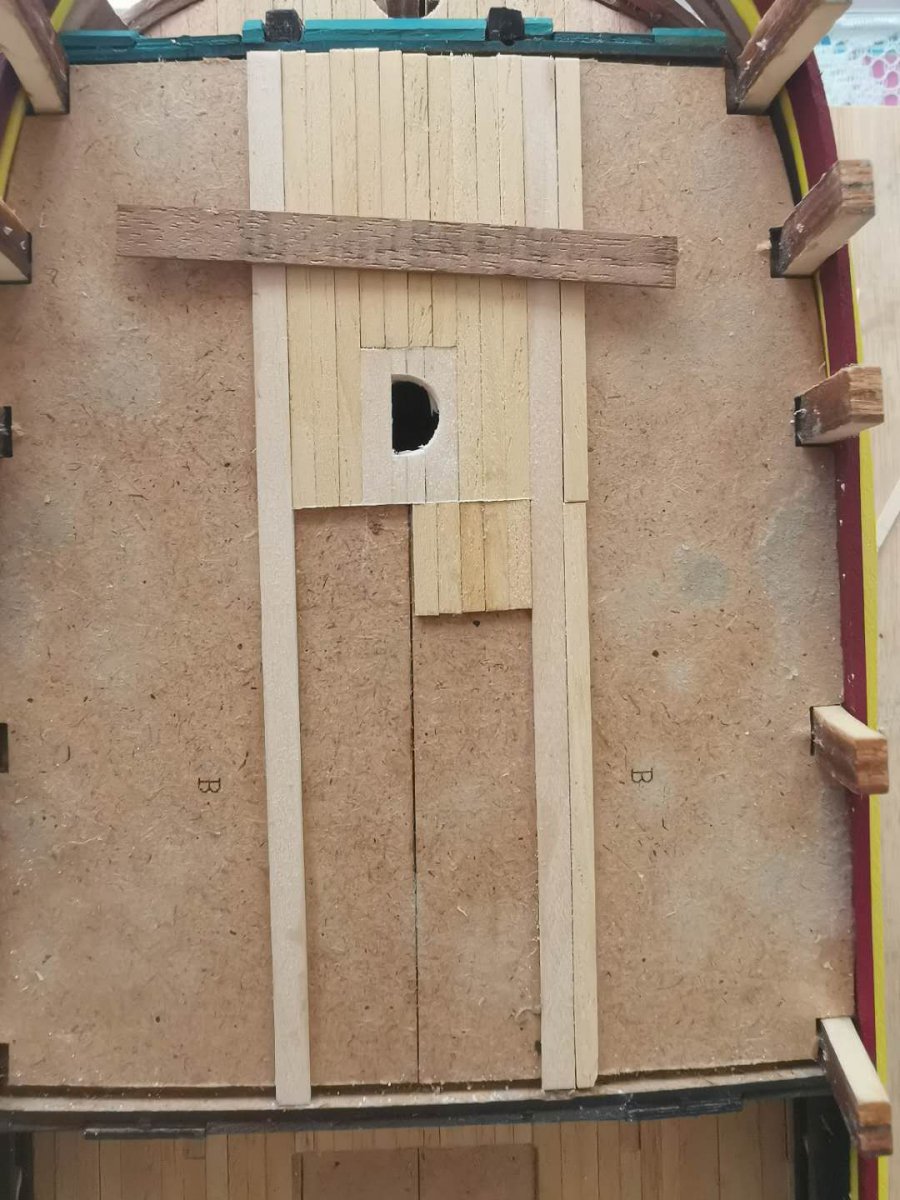

    And then planking on the bakdek started. Normally I only post pictures of a section once I am finished, but I wanted to show some work in progress ... Note the mildew that has formed on the MDF due to the extreme humidity during summer on the East Coast in China.

    Build 333.jpg

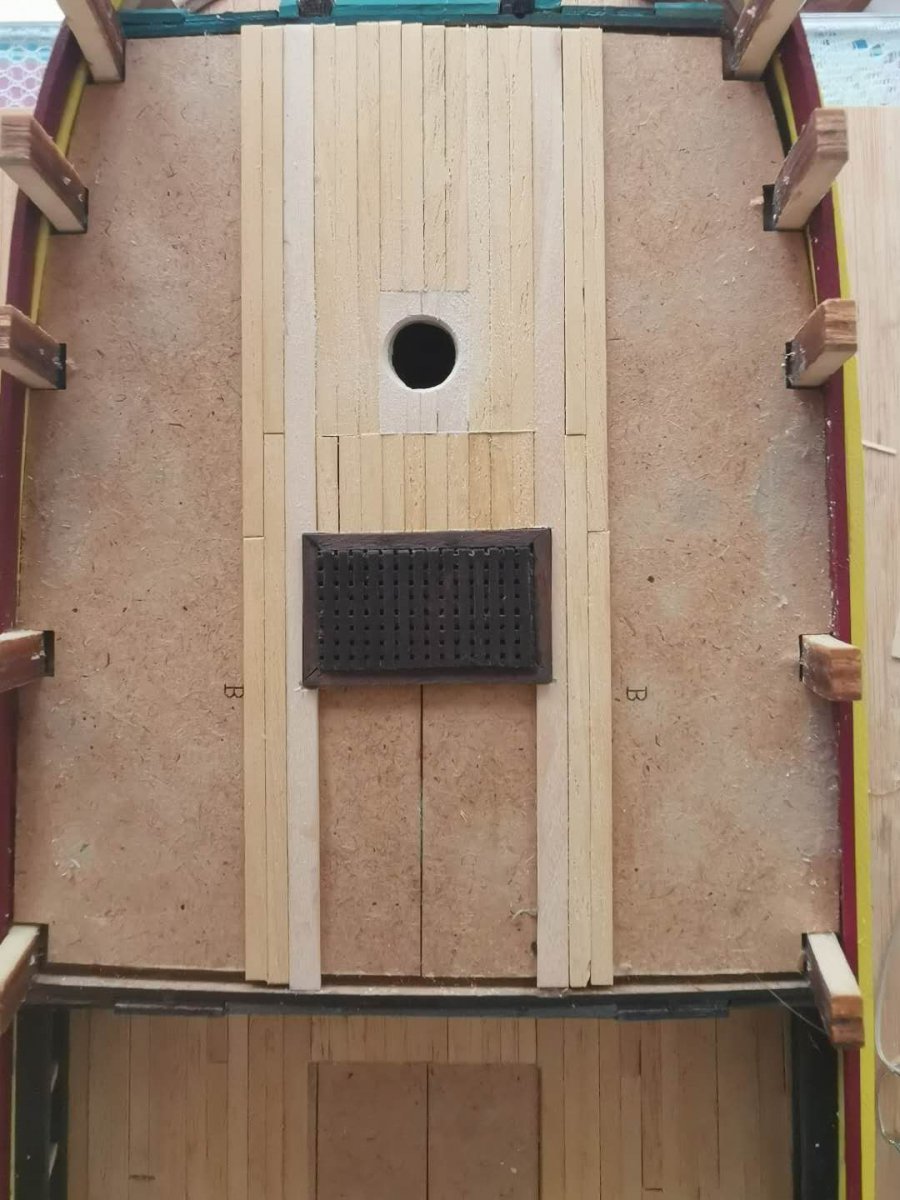

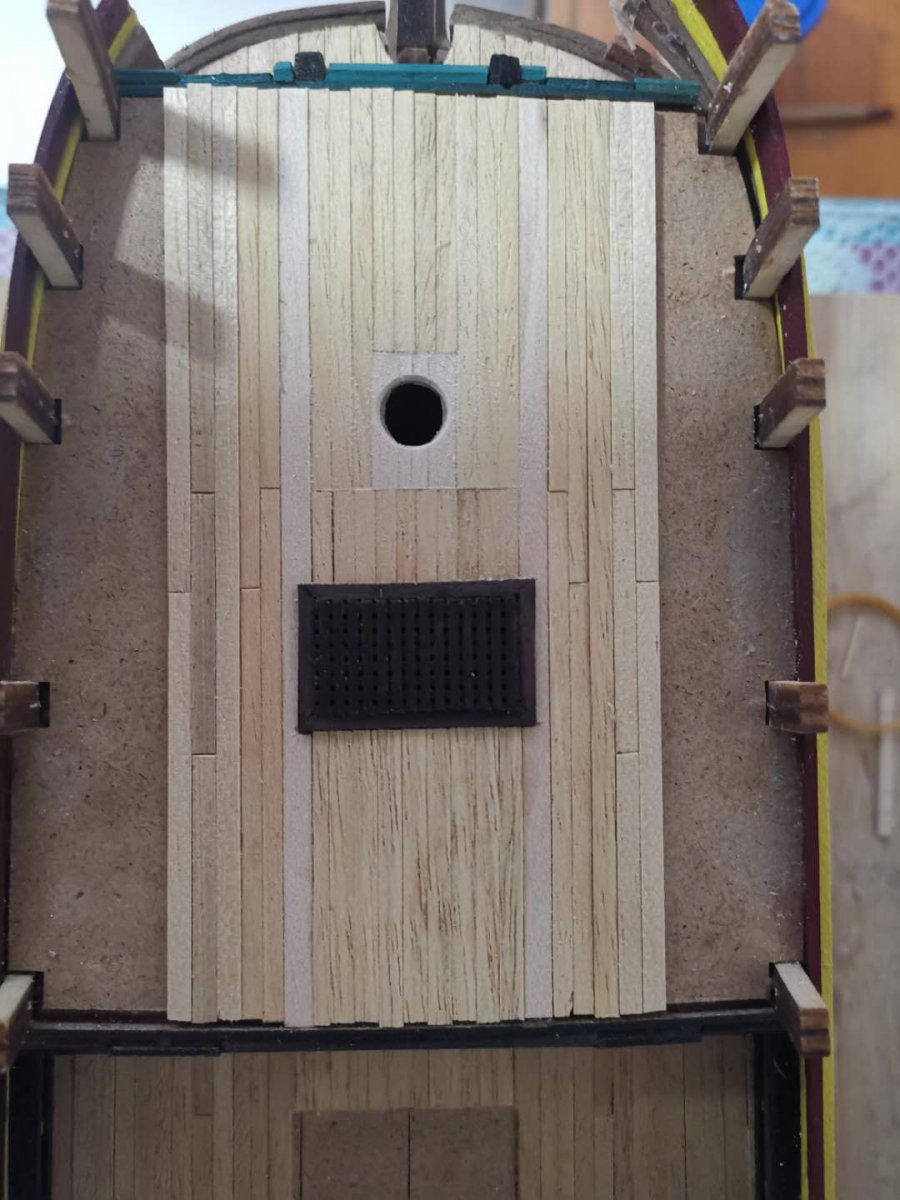

    Rooster installed on bakdek. Kolderstok's plans for the Batavia do not indicate a rooster here - just a closed luik. As I will already have two closed luiken on the verdek, I wanted something different for the bakdek. The rooster is the exact same size as the luik.

    Build 334.jpg

    Please note that ALL plank edges still need to be TRIMMED and finished off.

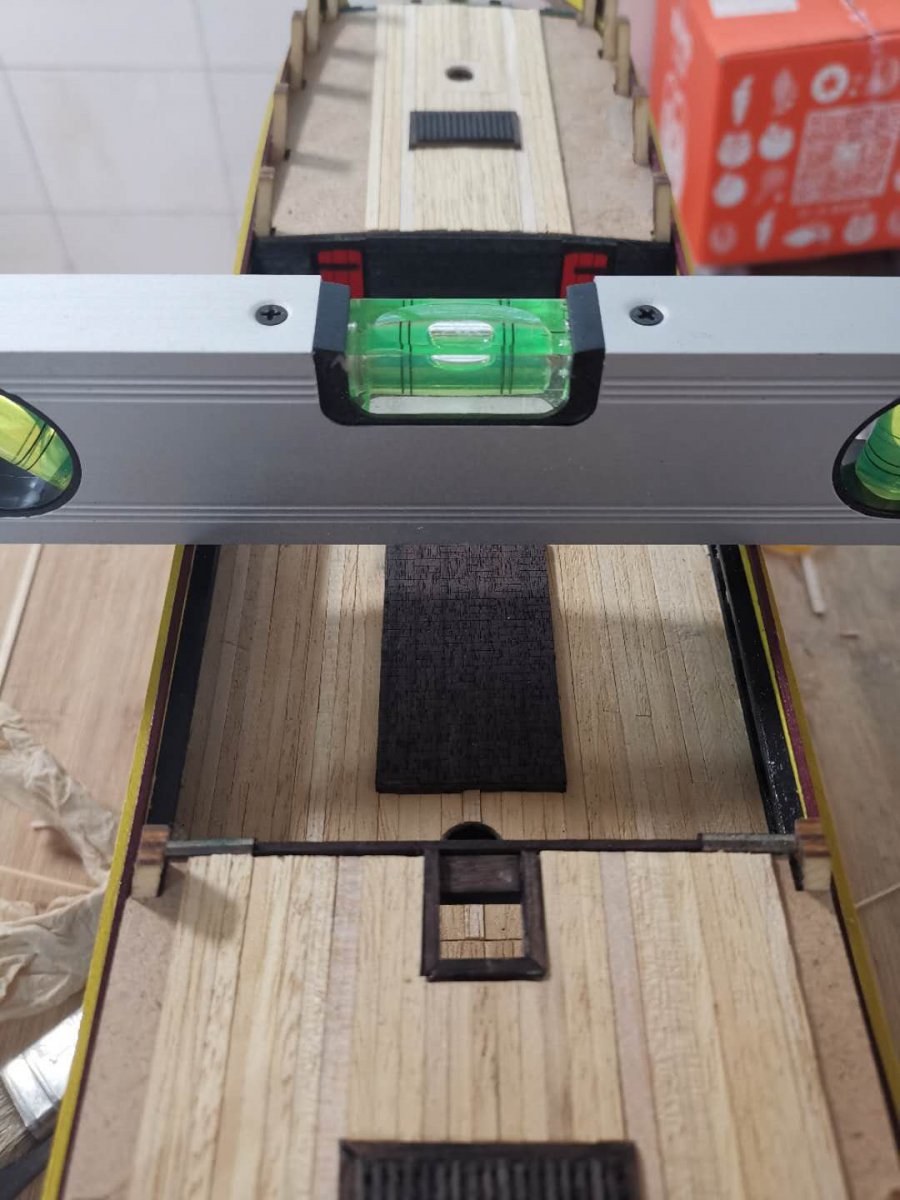

    Just to make sure that everything is still straight and true ...

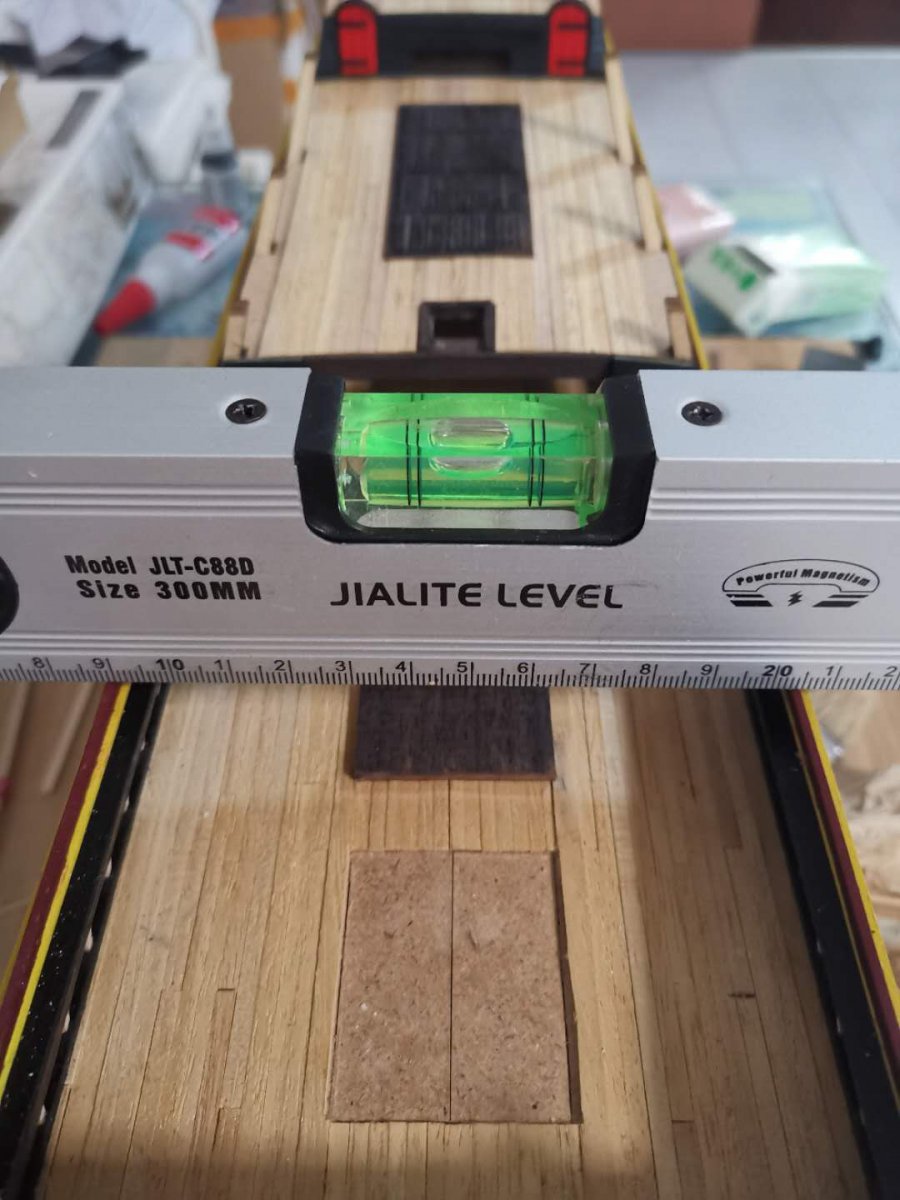

    Build 335.jpg

    Build 336.jpg

    Thank you all for watching and for following. As always your comments and input are greatly appreciated.

    Stay safe, keep healthy and take care.

    Warm greetings - Heinrich
