KOLDERSTOK BATAVIA / HAARLEM

@Danny Mulders. Dear Danny - it is great to hear from you. You are the original Batavia builder (the Admiraal doesn't count !) and I follow your build log very closely. In fact, I have rewritten your whole build log in English and with all your photographs that helps a great deal with the build.

I am now at the point where I have to decide whether to open the Hatches on Deck A or leave them closed. I see that even though you opened them at first, you closed them later - as most other builders seem to do as well.

Vriendelijk groet
Heinrich



Unless you can source some extra gratings to cover the hatches, leave them closed. The openings are simply too large to hide the fact that the deck below is completely flat and that there are no full cannons with gun carriages present. If I had noticed this fact sooner I wouldn't even have bothered with opening the hatches in the first place.



Point well taken, Danny. It makes complete sense!
Thank you - Heinrich



Mooi verslag zo met heldere foto's.



Dag heinrich,
Ik ben even afwezig geweest maar net bij gelezen je gaat snel en de goede kant op blijf je volgen
Groet Cees



Ik volgde al op handmatige afstand. Nu maar even automatiseren.

Mooi start, veel plezier en succes



@Hans Groenenberg: Dear Hans. I am glad that you enjoy the build log. Thank you for your comments - it is sincerely appreciated.

Vriendelijk groet - Heinrich



@cees050 : Beste Cees. Baie dankie vir die mooi woorde en dat jy die bouwverslag volg. Ek het nou so n bietjie tyd, so ek prober maar soveel werk gedoen kry as wat ek kan. Vanaf volgende Maand, sal die bouw seker baie stadiger wees.

Vriendelijk groet - Heinrich



@Hoosterw : Beste Hans. Baie dankie dat jy die bouw volg.Tot sover geniet ek alles baie - so daar is baie baie bouwplezier. Jou goeie wense word opreg waardeer.

Vriendelijk groet - Heinrich



Dear Friends

I have a short update that I can share with you. As you will recall from my previous post, I installed the "geschutpoorten" on the starboard side and then replicated it on the port side.

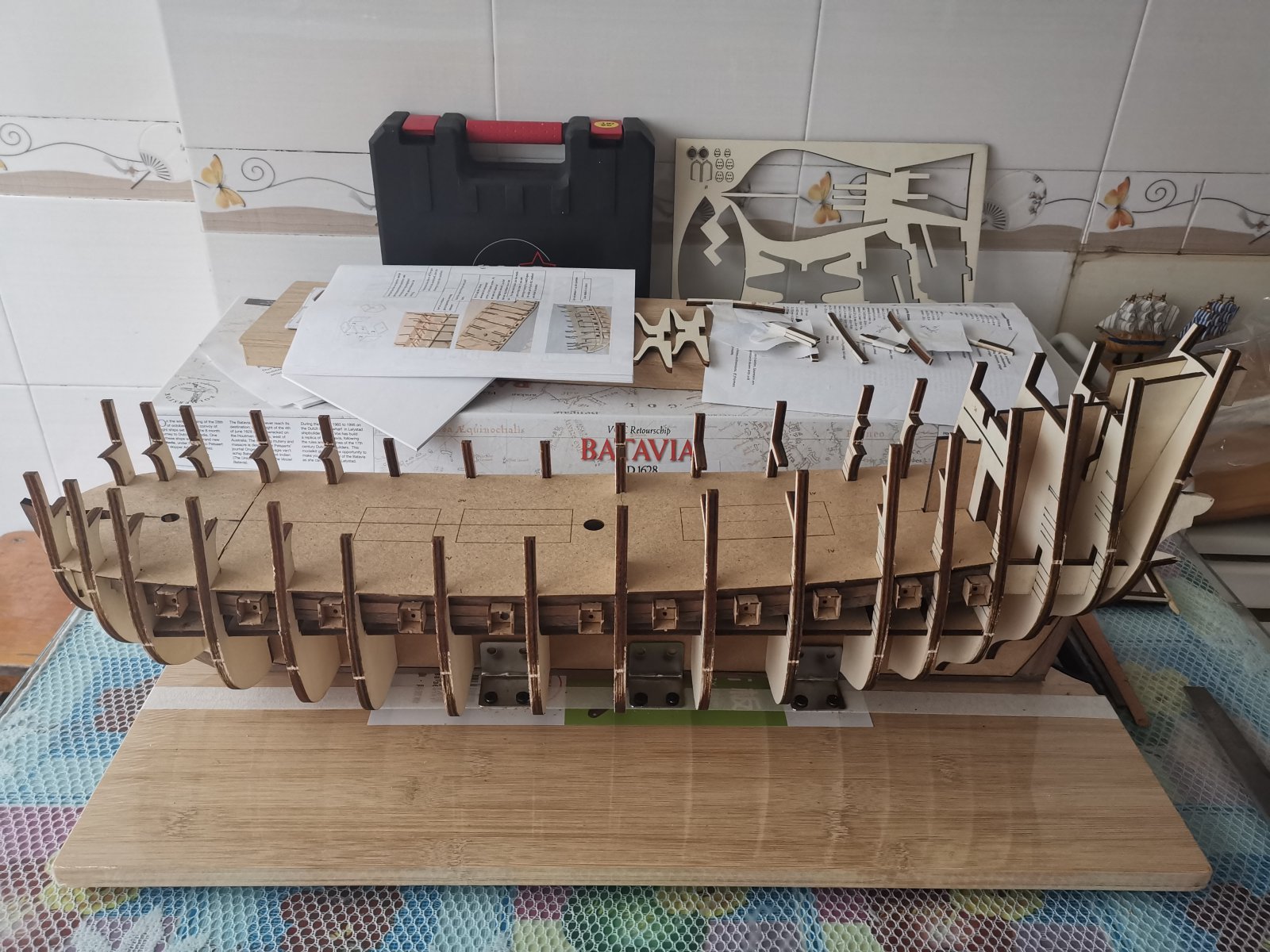

This is still a picture of the starboard side with the boxes lying ready in front of the hull.

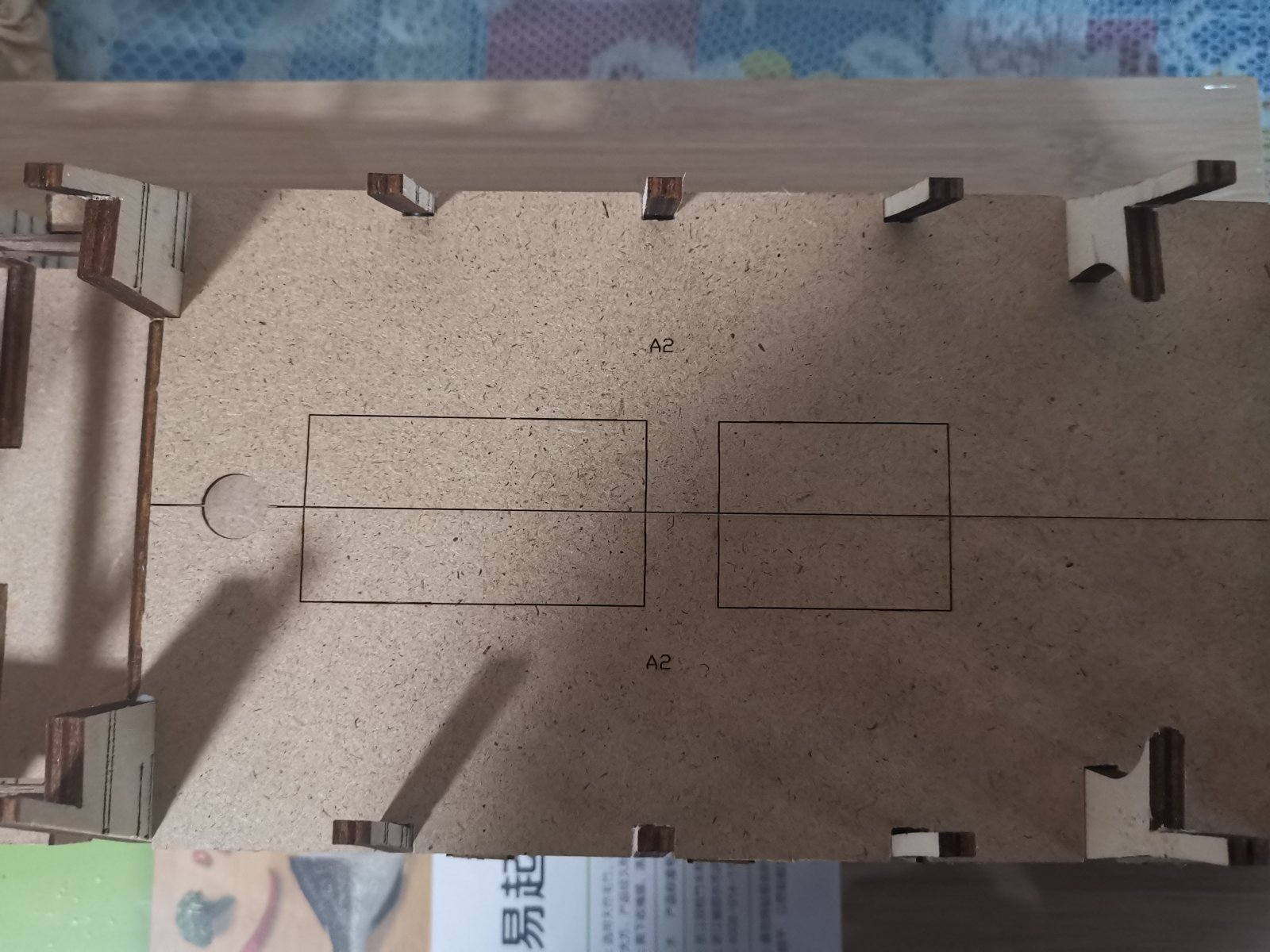

Finally I could upgrade to a bigger building board with proper clamps to hold the keel and then it was time for the fitment of Deck A. As the name suggests this is the first "real" deck and consists of 6 parts - two each for the front, middle and rear sections.

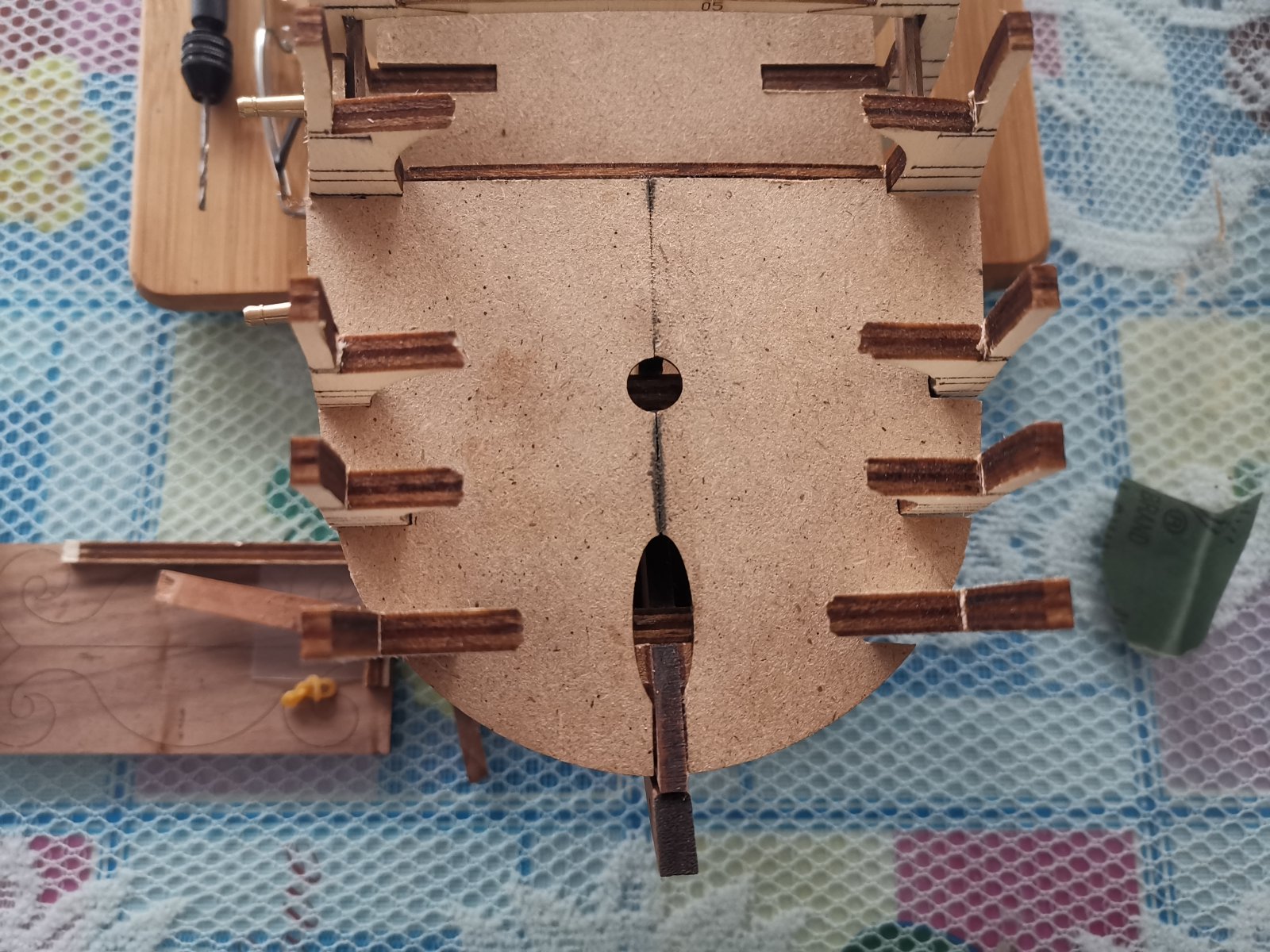

Front decks in position.



During the installation of the middle decks, these cans of Pepsi provided good weight to bear down the deck while the glue dried.



Port Side of the middle deck installed.

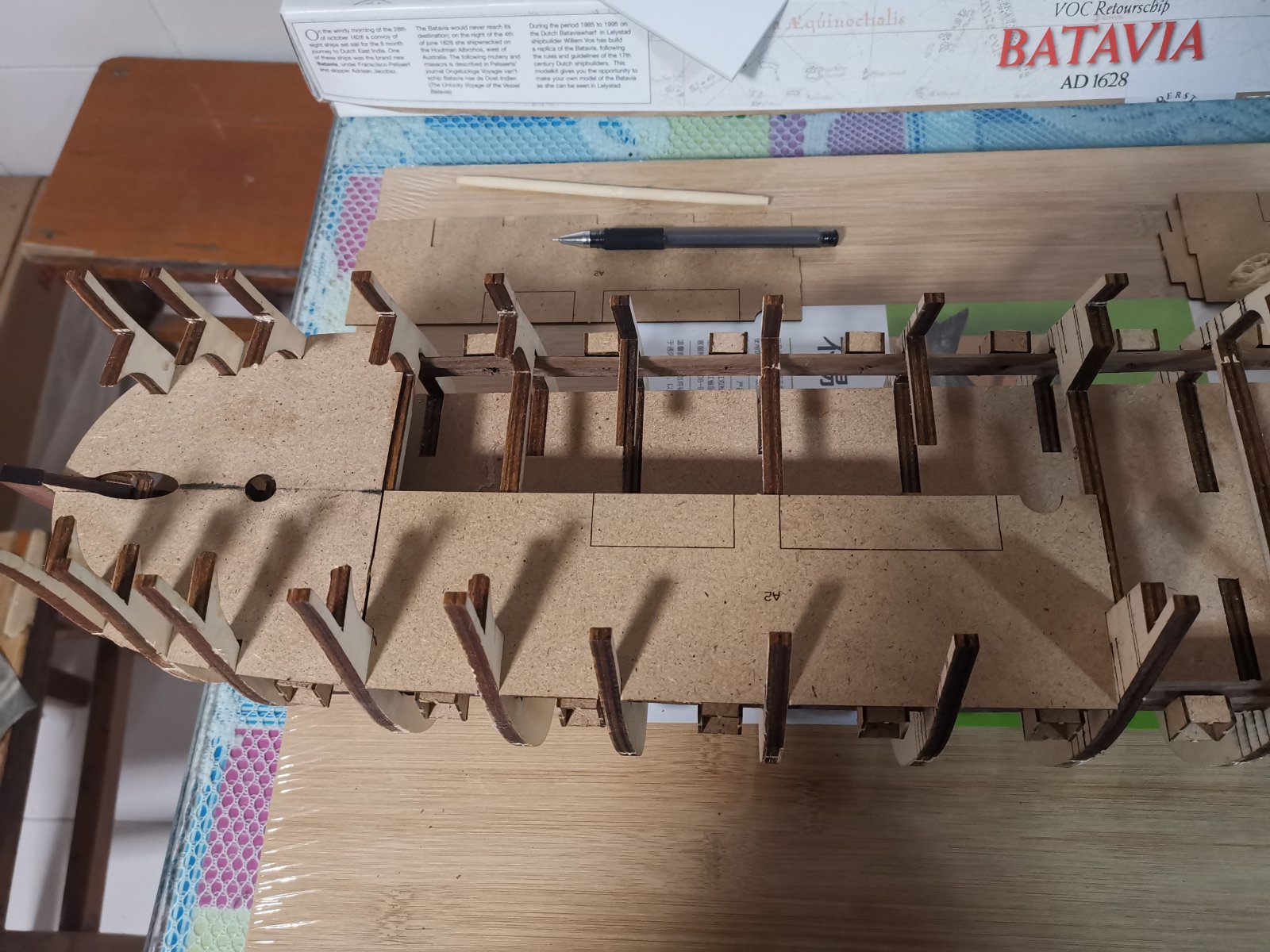

Middle section completed.



Deck assembly completed. (Above and Below)





Following most builders on the forum, I have decided to keep the two front hatches closed. This was a difficult decision, because I am not too keen on the canvas covers, but seeing that everything on the False Deck below is empty, it does not make much sense to open the hatches. I will still think of what can be done here.



Parting shot as the "scheepshelling" closed for the night.

Thank you all for reading and for following.

Vriendelijk groet - Heinrich



Knap werk hoor Heinrich wat je ons allemaal weer laat zien



Baie dankie Koos. Ek het nou al begin met die beplanking van Dek A, maar ek vat dit maar baie stadig om seker te maak ek hou by die doorsnede tekening. Ek gaan net n deeltjie eers beplank (tudden die schaarstokke) en dan aanskuif na die rompbeplanking.



Dat ziet er allemaal erg netjes uit!



@Prutsertjie: Baie dankie vir die compliment, Maarten. Dit gaan stadig, maar seker ...



Baie dankie Heinrich, i am enyoing this build very much.
I love the way you are building this ship



Mooi!



@Pingu57 : Dear Peter. Thank you very much for the kind words. I am glad that you enjoy the build. For now I try to stay as close as I possibly can to the instructions. Whenever I am not sure of something, the Admiraal gets a PB!

Vriendelijk groet - Heinrich



@Ronk: Baie dankie vir die complement, Ronk. Ek werk stadig en probeer my bes.

Vriendelijk groet - Heinrich



Dit is al een mooi begin Heinrich!
